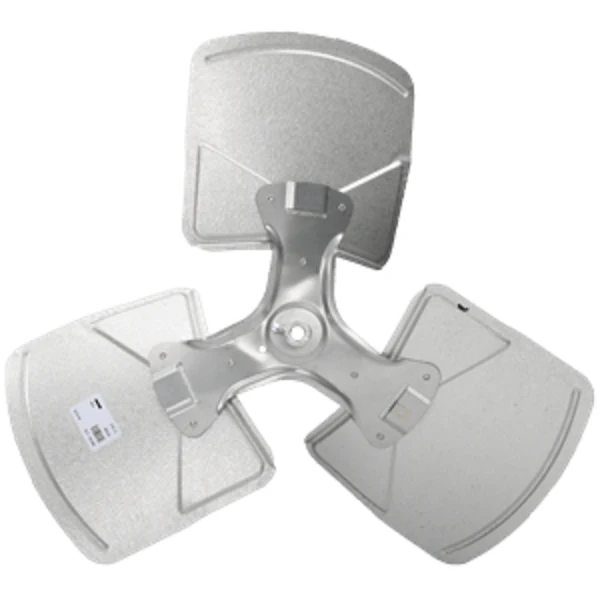

York S1-026-42491-000 Fan Blade
The York S1-026-42491-000 Fan Blade is a critical OEM replacement part engineered for high-static condenser environments. Built with a 22-inch diameter and a 27-degree pitch, this three-blade propeller is optimized to maintain the precise CFM delivery required by 13 SEER air conditioning and heat pump systems. Designed for CW (Clockwise) rotation, it features a 1/2-inch bore specifically located on the intake side to ensure proper seating on the motor shaft and balanced operation during high-duty cycles.
When swapping out a stressed or bent blade, using Source1 genuine parts is essential to prevent bearing failure and excess vibration in the condenser motor. This York fan blade (propeller) is a direct drop-in for several Coleman and Luxaire units, including the 2LA04703000 and 2BC04700106 series. Technicians should verify rotation and pitch before installation to maintain original equipment efficiency and sound dampening specifications.
Key Benefits
- Precise Airflow: The 27-degree pitch ensures optimal heat dissipation across the condenser coils.
- Balanced Construction: Factory-balancing reduces mechanical stress on the motor shaft and bearings.
- Direct OEM Fit: Eliminates the compatibility risks associated with universal multi-fit blades.
- Corrosion Resistance: Engineered for outdoor exposure in demanding HVACR applications.
Common Questions
How do I confirm the rotation of this blade?
This blade is Clockwise (CW) rotation. When looking at the blade with the set screw on the hub facing you, the rotation is determined by the direction of the leading edge.
Will this fit a 1/2" motor shaft?
Yes, this part features a standard 1/2-inch bore on the intake side for a secure fit on most standard 48-frame condenser motors.
What happens if the pitch is incorrect?
Using a blade with an incorrect pitch can overload the motor or fail to pull enough air, potentially leading to high head pressure and compressor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
