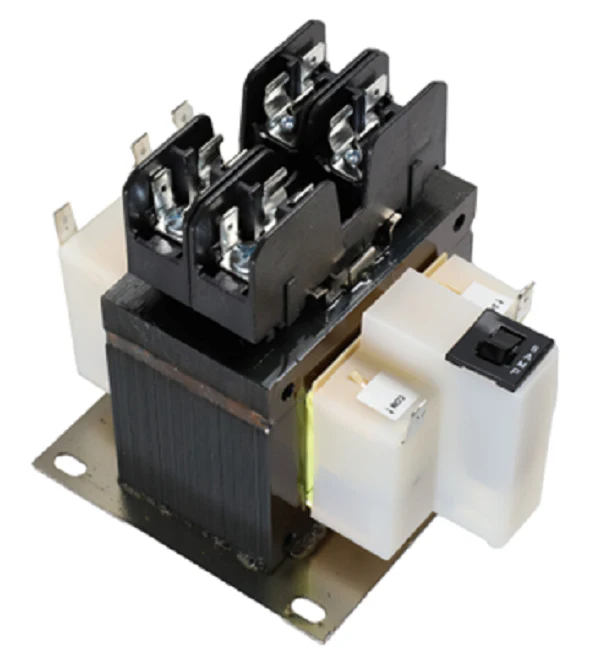

York S1-025-52313-000 Transformer
The York S1-025-52313-000 is an OEM HVAC control transformer engineered for high-demand commercial and residential applications requiring a stable 24V secondary output. This 150VA transformer is designed to handle the increased VA draw of multi-stage systems, heavy-duty contactors, and advanced control boards that standard 40VA or 75VA units cannot support. Featuring a 208/230V to 24V step down configuration, this component ensures precise voltage regulation under varying load conditions. It serves as the direct replacement for S1-025-49717-000, maintaining identical footprint and mounting specifications for efficient field installations. As a critical multi-tap power source, it provides the necessary overhead for complex control circuits while mitigating the risk of brownouts or component chatter. For technicians servicing York, Luxaire, or Coleman equipment, utilizing this York replacement part ensures full compatibility with factory wiring harnesses and load requirements.
Technical Benefits
- 150VA Power Rating: Provides significant overhead for modern HVACR control circuits and auxiliary components.
- OEM Compatibility: Exact fit replacement for the S1-025-49717-000, eliminating the need for mounting bracket modifications.
- Precision Windings: Optimized for 208V or 230V primary inputs to maintain a consistent 24V secondary signal.
- Industrial Construction: Built to withstand the thermal stresses common in rooftop packaged units and large-scale air handlers.
Common Technical Questions
Can this transformer replace a lower VA rated unit?
Yes, you can use a higher VA rated transformer like this 150VA model to replace a 40VA or 75VA unit, provided the primary and secondary voltages match. The higher VA rating allows the transformer to handle more load without overheating.
Is this a direct replacement for the S1-025-49717-000?
Yes, this is the current manufacturer-designated replacement. It matches the electrical specifications and physical dimensions required for a drop-in installation.
What happens if the primary voltage is set to 208V on a 230V line?
Incorrectly tapping the primary side can lead to excessive secondary voltage, which may damage sensitive logic boards or solenoids. Always verify the incoming line voltage with a multimeter before completing the secondary connections.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
