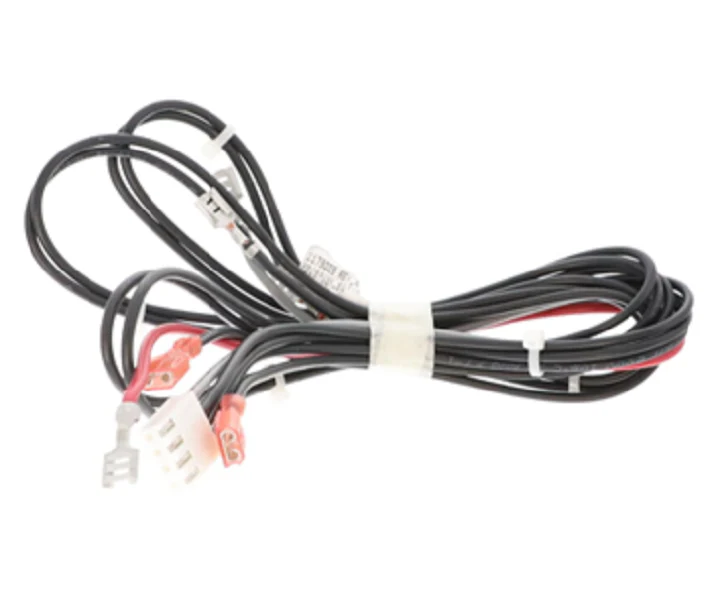

York S1-025-47295-000 Harness
The York S1-025-47295-000 is a critical OEM HVAC wiring harness engineered for seamless integration within residential split-system heat pumps. This RV/CONTACTOR/CAP HARNESS serves as the primary electrical link between the reversing valve, system contactor, and the dual-run capacitor. Designed to endure the high-vibration environment of a condensing unit, it utilizes high-grade insulation and factory-crimped terminals to prevent voltage drops and resistance build-up. For technicians, using this York replacement part ensures that the low-voltage control signals for heating and cooling transitions are delivered with precision, maintaining the integrity of the defrost board logic. This heat pump reversing valve wiring assembly is built to the exact specifications required for Johnson Controls equipment, eliminating the need for field-modified pigtails or substandard splicing. Selecting the S1-025-47295-000 guarantees that the compressor and fan circuits remain properly phased and protected during high-amperage startup sequences.
Key Benefits
- Direct OEM Replacement: Matches factory lead lengths and terminal gauges to ensure a drop-in fit without wire modification.
- Enhanced Durability: Engineered with thermal-resistant jacketing to withstand extreme cabinet temperatures and prevent insulation cracking.
- Operational Reliability: Provides secure connectivity for the reversing valve solenoid, reducing the risk of intermittent heating or cooling failures.
Common Questions
What equipment is compatible with the S1-025-47295-000 harness? This assembly is designed for York, Coleman, and Luxaire heat pump units that utilize a centralized connection point for the contactor and capacitor.
Is this harness used for a single-stage or two-stage system? It is primarily configured for standard single-stage heat pump reversing valve applications where a direct capacitor-to-contactor bridge is required.
Does the S1-025-47295-000 include the molex connectors? Yes, it features the standardized manufacturer-specific plugs required for a secure, moisture-resistant connection to the control sub-assemblies.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $25.41
-65%$25.41
$8.89York S1-025-47295-000 Harness
