York S1-025-41349-000 Wiring Harness

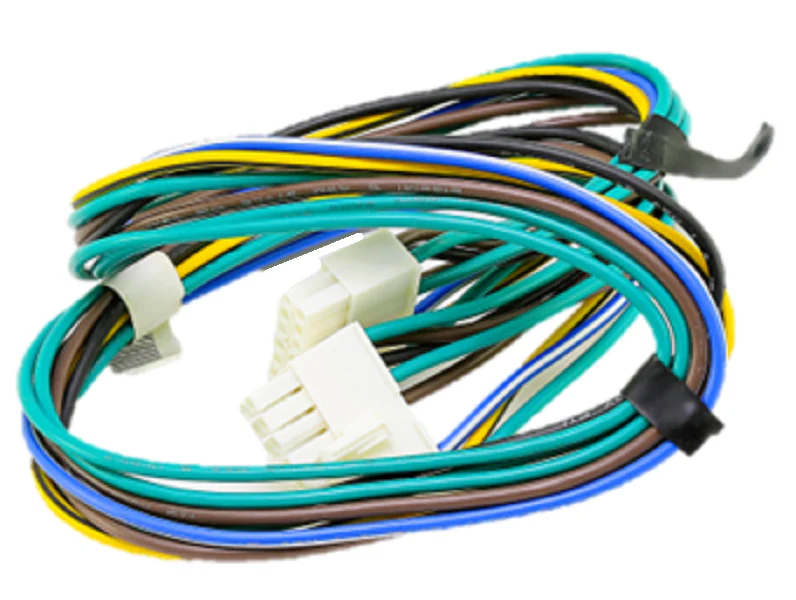

The York S1-025-41349-000 Wiring Harness is a critical OEM HVAC replacement part engineered for precise electrical interfacing within residential and light commercial equipment. This 16-pin wiring harness provides the necessary point-to-point continuity between control boards and system peripherals, ensuring low-resistance signal transmission. Designed as a direct drop-in for York heating and cooling systems, this harness eliminates the need for field-splicing or terminal crimping, maintaining the integrity of the original factory wiring schematic. Technical service for intermittent communication errors or voltage drops often necessitates the replacement of high-density pin connectors. By utilizing this genuine York part, technicians ensure proper terminal seating and housing alignment, which prevents vibration-induced harness back-outs. This component is essential for restoring specified electrical sequences and maintaining the operational safety standards of the unit. Field verification of the pin-out configuration and model compatibility is recommended prior to installation to ensure seamless integration with existing low-voltage circuitry.
Key Benefits for the Contractor
- Direct OEM Integration: Eliminates impedance issues and mismatched terminal sizing common with universal or aftermarket connectors.
- 16-Pin Precision: High-density connector housing ensures secure locking and pins that remain flush for stable HVAC electrical connectivity.
- Reduced Rework: Pre-terminated leads and factory-length wire runs facilitate faster system diagnostics and part replacement.
- Environmental Resilience: Insulation materials are rated for the thermal fluctuations and moisture exposure typically found in air handler and furnace cabinets.
Common Questions
Is the S1-025-41349-000 pin-compatible with other brands?
While some 16-pin configurations appear similar, this harness is specifically pinned for York HVAC systems. Using it in non-compatible brands may lead to incorrect voltage routing or control board damage.
Does this harness include the mating connector for the control board?
This is the male/female harness side designed to plug into the existing header on the OEM control board. It replaces the wiring run and the plug housing themselves.
When should this wiring harness be replaced?
Replacement is indicated if there is visible thermal damage at the pins, corrosion in the housing, or "open" readings during a continuity test across the harness leads.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
