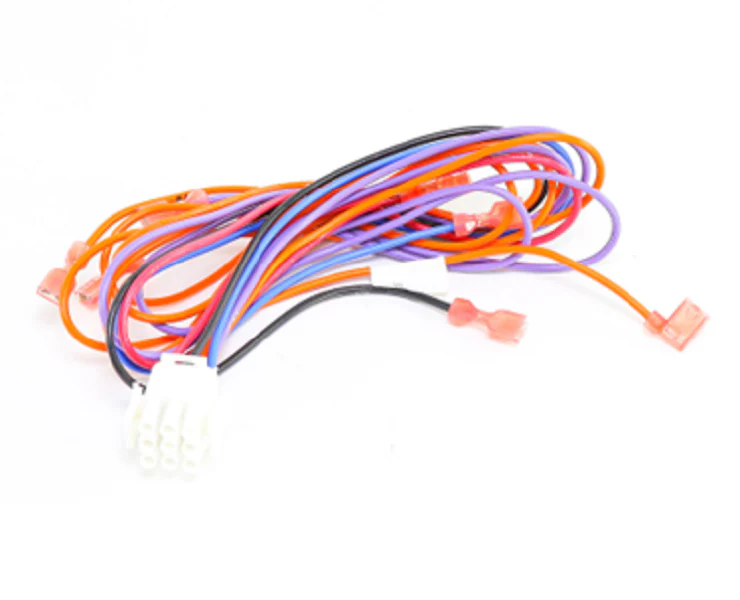

York S1-025-41216-000 Wire Harness
The York S1-025-41216-000 Wire Harness is a vital OEM HVAC replacement part designed for precise signal transmission between the system controller and operational components. Built to withstand the high-temperature environments of residential and commercial air handlers, this control wire harness features high-grade 16-pin connector architecture to ensure low-resistance electrical continuity. Utilizing this S1-025-41216-000 harness maintains factory-spec electrical routing, which is critical for preventing communication faults and control board short-circuiting. As a veteran-grade York wiring assembly, it facilitates a secure, plug-and-play interface for technicians troubleshooting low-voltage control circuits.
Key Benefits- Ensures direct OEM compatibility with specific York and Johnson Controls HVAC systems, eliminating the need for field-spliced wiring.
- Features high-durability thermal insulation to resist wire degradation from internal cabinet heat cycles.
- Optimizes system communication by maintaining stable 24V signal pathways between control modules and peripheral sensors.
- Pre-terminated multipin connectors reduce installation time and prevent wiring errors during field replacements.
What systems are compatible with the York S1-025-41216-000?
This harness is primarily used in York and Source 1 residential air handlers and packaged units. Always verify your specific model number against the HVAC wiring diagram to ensure the 16-pin configuration matches the control board header.
Can I repair my existing harness instead of replacing it?
While minor insulation nicks can sometimes be taped, if more than 20% of the control wire harness shows signs of heat damage or terminal corrosion, a full replacement with the S1-025-41216-000 is required to maintain system safety and signal integrity.
Is this a genuine Source 1 / York part?
Yes, this is an OEM York replacement part, ensuring that the wire gauge, terminal tension, and connector housing meet original factory engineering specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
