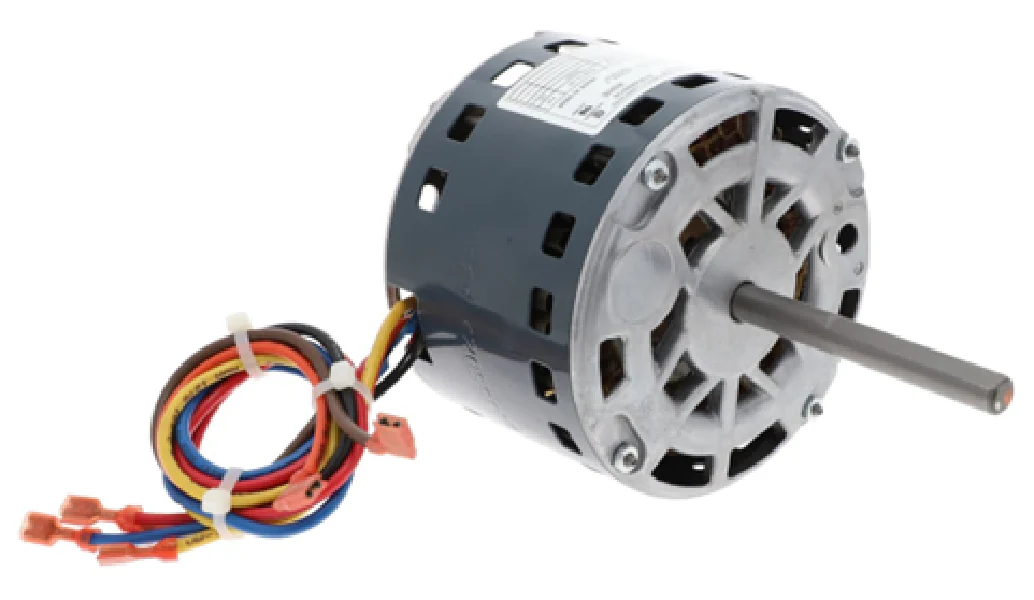

York S1-024-40903-000 Motor
The York S1-024-40903-000 is an OEM 1/3 HP blower motor engineered for precision airflow in residential furnaces and air handlers. Operating on a 230V single-phase power supply at a nominal 950 RPM, this 4-speed furnace motor provides the versatile torque needed to overcome system static pressure and maintain delta-T specifications. This direct-drive unit features a clockwise (CW) rotation and a 5-5/8 inch diameter (48Y frame) with a resilient base mount to minimize vibration transfer. As a veteran-grade HVAC replacement part, it is the primary substitution for old part numbers including S1-02427651000 and 024-27880-000. For proper field integration, ensure the run capacitor (standard 370V rating) is inspected or replaced to match the motor's microfarad requirements. This multi-tap motor utilizes clear color-coded leads to facilitate rapid speed selection for varying ductwork configurations and seasonal heating or cooling loads.
- OEM Compatibility: Direct-fit replacement for Source1, York, Luxaire, and Coleman air handlers and furnaces.
- Multi-Speed Versatility: Features a 4-speed configuration to optimize CFM based on system demand and static pressure.
- High-Efficiency Performance: 1/3 HP permanent split capacitor (PSC) design ensures reliable start-up and consistent duty cycles.
- Durable Construction: Built with a 48Y frame and thermal overload protection for heavy-duty HVACR environments.
- Quiet Operation: Precision-balanced shaft and resilient mounting reduce mechanical noise across all speed taps.
Common Questions
What are the wiring lead functions for the S1-024-40903-000?
This 4-speed motor uses various taps to control airflow; typically, the black lead is high speed, while others provide medium-high, medium-low, and low speeds to match the furnace's heat rise and cooling requirements.
Does this motor require a specific run capacitor?
Yes, as a PSC motor, it must be paired with a run capacitor of the correct MFD rating (typically 5 or 7.5 MFD at 370V/440V) to ensure proper starting torque and motor longevity.
Is the S1-024-40903-000 rotation reversible in the field?
The S1-024-40903-000 is factory-set for clockwise (CW) rotation. Always check the rotation of the existing blower wheel compared to the shaft end to ensure compatibility before securing the motor to the blower housing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
