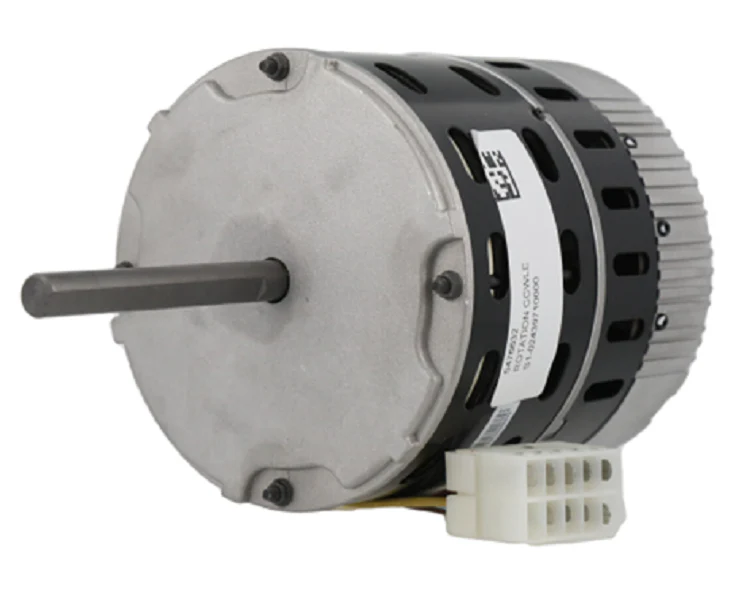

York S1-024-39710-000 Motor
The York S1-024-39710-000 Motor is an OEM ECM constant torque motor designed for high-efficiency performance in York, Luxaire, and Coleman residential air handlers and furnaces. Operating at 120V with a 1/2 HP rating, this programmed blower motor utilizes an integrated electronic control module to maintain consistent airflow across varying static pressures. As a direct replacement for failed X13 blower motors, the S1-024-39710-000 ensures precise CFM delivery and reduces overall amperage draw compared to standard PSC alternatives. Field technicians should verify the 48-frame housing and 5-pin power/control harness compatibility before installation. This motor is factory-programmed to match specific HVAC blower wheel curves, ensuring the system operates within manufacturer-specified temperature rises and static limits. Proper grounding and surge protection are recommended to protect the sensitive internal motor control module from voltage transients during startup cycles.
Key Benefits for Technicians- OEM Compatibility: Precision-programmed for York and Johnson Controls equipment to ensure correct furnace blower speed settings.
- High Efficiency: 1/2 HP ECM motor technology reduces energy consumption and improves SEER ratings.
- Constant Torque Performance: Maintains air volume even as filter static pressure increases over time.
- Simplified Installation: 48-frame design with standard mounting patterns for rapid field replacement.
- Quiet Operation: Advanced brushless DC design minimizes vibration and harmonic noise in the ductwork.
What is the difference between this motor and a standard PSC motor?
The York S1-024-39710-000 is an electronically commutated motor, which is more efficient than a Permanent Split Capacitor motor. It uses a microprocessor to control speed and torque, whereas PSC motors run at a fixed speed based on load.
Does this motor require a specific capacitor?
No, this is a brushless DC motor with an integrated power module. It does not require an external start or run capacitor.
Can I use this to replace a 1/3 HP motor?
It is critical to match the horsepower rating of the original equipment. Upgrading to a 1/2 HP programmed motor when the system was designed for 1/3 HP can lead to improper airflow and heat exchanger damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
