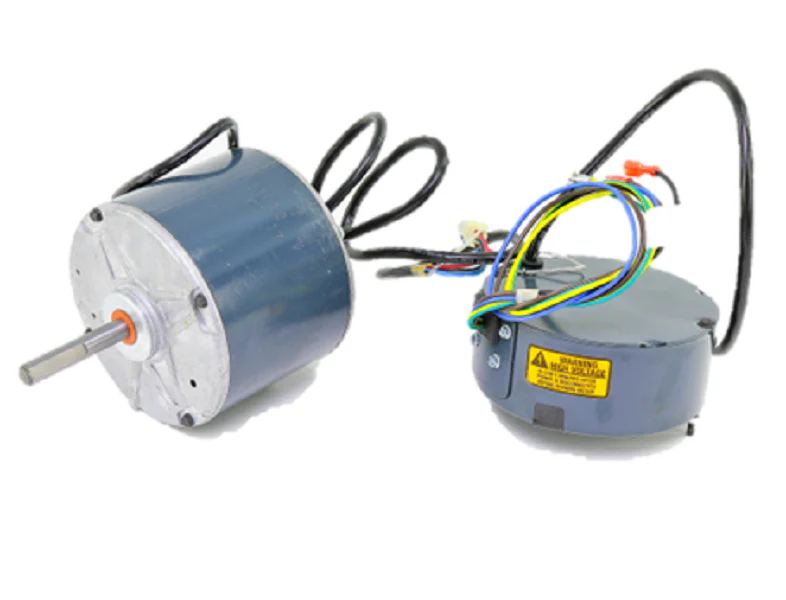

York S1-024-36319-000 Motor
The York S1-024-36319-000 is an OEM 1/2 HP condenser fan motor designed specifically for precision airflow management in high-efficiency condensing units. This 230V ECM motor operates at a nominal 1100 RPM, utilizing brushless DC technology to provide superior torque control and energy efficiency compared to standard PSC alternatives. As a direct replacement part, it integrates seamlessly with existing system logic to maintain optimal head pressure and heat dissipation across the outdoor coil. The S1-024-36319-000 motor features integrated drive electronics that eliminate the need for an external run capacitor, reducing potential failure points within the electrical circuit. Technicians can expect a drop-in installation that preserves the original equipment's airflow specifications and SEER ratings. This replacement ECM condenser motor is engineered to withstand harsh outdoor environments, maintaining consistent performance during high-ambient cooling demands while minimizing acoustic signatures through advanced electromagnetic design.
Key Benefits
- Efficient ECM Technology: Reduces total system amp draw and improves seasonal energy efficiency.
- Direct OEM Fitment: Matches factory specifications for shaft length, diameter, and mounting bolt patterns to ensure rapid field replacement.
- Enhanced Thermal Management: Integrated electronics optimize motor temperature, protecting internal windings from premature degradation.
- Variable Speed Compatibility: Communicates with the system control board to adjust fan speeds based on real-time load requirements.
Common Questions
Is this motor compatible with 115V systems?
No, this specific model is rated strictly for 230V single-phase applications. Always verify voltage at the contactor before installation.
Do I need to purchase a new capacitor for this motor?
Because this is an ECM (Electronically Commutated Motor), it does not utilize a traditional run capacitor. The phase conversion is handled by the internal control module.
Can this motor be used in a furnace or air handler?
This motor is specifically designed for condenser fan applications. Using it for indoor blower duty may result in improper static pressure handling and potential motor failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,145.69
-65%$1,145.69
$400.99York S1-024-36319-000 Motor
The York S1-024-36319-000 is an OEM 1/2 HP condenser fan motor designed specifically for precision airflow management in high-efficiency condensing units. This 230V ECM motor operates at a nominal 1100 RPM, utilizing brushless DC technology to provide superior torque control and energy efficiency compared to standard PSC alternatives. As a direct replacement part, it integrates seamlessly with existing system logic to maintain optimal head pressure and heat dissipation across the outdoor coil. The S1-024-36319-000 motor features integrated drive electronics that eliminate the need for an external run capacitor, reducing potential failure points within the electrical circuit. Technicians can expect a drop-in installation that preserves the original equipment's airflow specifications and SEER ratings. This replacement ECM condenser motor is engineered to withstand harsh outdoor environments, maintaining consistent performance during high-ambient cooling demands while minimizing acoustic signatures through advanced electromagnetic design.
Key Benefits
- Efficient ECM Technology: Reduces total system amp draw and improves seasonal energy efficiency.
- Direct OEM Fitment: Matches factory specifications for shaft length, diameter, and mounting bolt patterns to ensure rapid field replacement.
- Enhanced Thermal Management: Integrated electronics optimize motor temperature, protecting internal windings from premature degradation.
- Variable Speed Compatibility: Communicates with the system control board to adjust fan speeds based on real-time load requirements.
Common Questions
Is this motor compatible with 115V systems?
No, this specific model is rated strictly for 230V single-phase applications. Always verify voltage at the contactor before installation.
Do I need to purchase a new capacitor for this motor?
Because this is an ECM (Electronically Commutated Motor), it does not utilize a traditional run capacitor. The phase conversion is handled by the internal control module.
Can this motor be used in a furnace or air handler?
This motor is specifically designed for condenser fan applications. Using it for indoor blower duty may result in improper static pressure handling and potential motor failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
