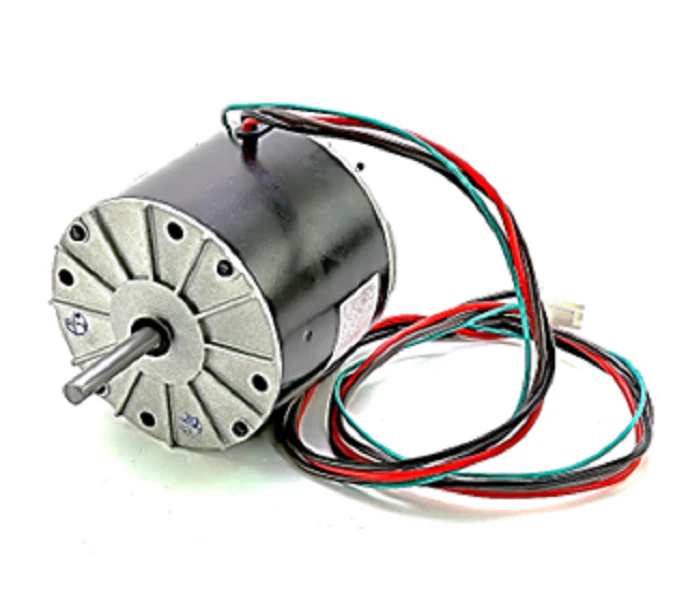

York S1-024-36230-000 Motor
When the heat is on and airflows are critical, the York S1-024-36230-000 Condenser Fan Motor provides the reliability field technicians expect for high-demand outdoor units. This genuine Source 1 replacement motor is a 1/3 HP induction motor, specifically engineered for 208/230-volt single-phase applications. Operating at a nominal 1100 RPM with a CWLE (Clockwise from Lead End) rotation, it ensures optimal heat rejection through the condenser coils, maintaining system head pressure within design parameters. Built on a 48-frame (5-5/8 inch diameter) chassis, this PSC (Permanent Split Capacitor) motor features a totally enclosed air-over (TEAO) design to protect internal windings from environmental debris and moisture, ensuring long-term service in harsh outdoor conditions.
Key Benefits for the Contractor- OEM Precision: Direct replacement for York, Coleman, and Luxaire condenser units, eliminating the need for mounting bracket modifications or electrical "field-engineering."
- Optimized Thermal Performance: Designed for continuous duty at 1100 RPM, ensuring the airflow matches the original factory static pressure specifications.
- Rugged Enclosure: The NEMA 48 frame housing is sealed to prevent ingress of rain and dust, reducing premature bearing failure in the field.
- Simplified Wiring: Typically arrives with standard lead lengths and a 6-pin connector to speed up cycle times during emergency service calls.
Is this a direct replacement for an 850 RPM motor?
No. Speed matching is critical for condenser efficiency. This motor is rated for 1100 RPM; installing it in place of an 850 RPM model can lead to excessive amp draw and fan blade failure.
Do I need to replace the capacitor with this motor?
Yes, it is standard trade practice to replace the run capacitor whenever installing a new condenser fan motor to prevent operational issues and protect the new windings.
What is the frame size and diameter?
This is a standard 48Y Frame motor with a 5.6-inch diameter, compatible with most York family outdoor fan motor mounts.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $233.60
-65%$233.60
$81.76York S1-024-36230-000 Motor
