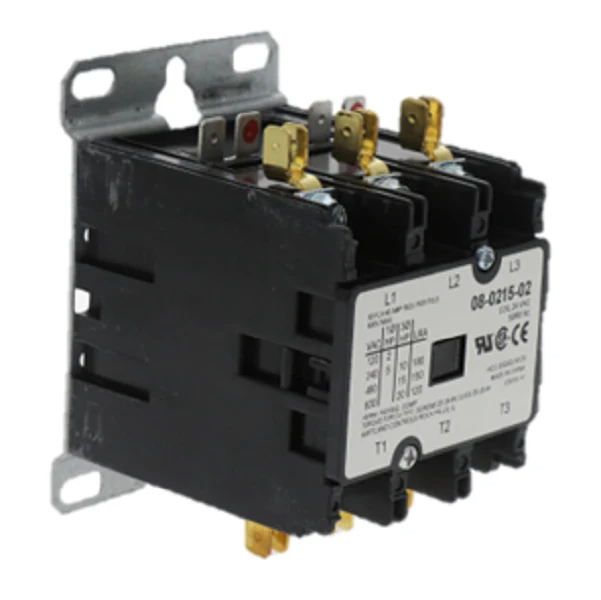

York S1-024-36143-000 Contactor
The York S1-024-36143-000 Contactor is a precision-engineered 3-pole HVAC contactor designed for high-demand residential and commercial environmental control systems. Operating with a 24V coil voltage, this component manages electrical loads up to 30 Amps, providing the inductive switching power necessary for reliable compressor and condenser fan operation. Built to rigorous OEM technical specifications, it serves as a direct replacement for failing units in York, Luxaire, and Coleman equipment, ensuring proper circuit isolation and preventing premature terminal pitting under heavy in-rush currents.
For service technicians, this York 24V 30A 3P contactor resolves common issues such as chattering, fused contacts, or coil burnout. The three-pole configuration allows for the simultaneous management of three separate electrical lines, making it an essential HVAC replacement part for multi-phase or high-capacity single-phase units. By utilizing this genuine York contactor, you maintain the original system tuning, ensuring the HVAC control circuit remains stable and compatible with the existing 24V transformer output.
Key Benefits- 3-Pole Switching: Handles three separate electrical lines simultaneously for consistent HVAC load management.
- 30 Amp Rated: Engineered to withstand the high starting torque and continuous running amps of condenser units.
- 24V Low Voltage Coil: Provides seamless integration with standard HVAC 24-volt control systems and thermostats.
- Compact Footprint: Standard mounting dimensions allow for rapid installation in existing control boxes without modifications.
- High Dielectric Strength: Minimized arcing risk during contact engagement, protecting downstream components from voltage transitions.
Is this contactor compatible with other brands?
Yes, while this is a York OEM part, it is functionally equivalent to many standard 30A 3-pole contactors with a 24V coil. However, verifying the physical mounting footprint is recommended for non-Johnson Controls equipment.
When should a contactor be replaced?
Replacement is necessary if you observe pitted silver contacts, a "humming" or "chattering" sound during engagement, or if the 21.6V–26.4V signal is present at the coil but the contacts fail to pull in.
Can I use a 2-pole contactor in place of this 3-pole unit?
No. For safety and circuit integrity, you must replace a 3-pole contactor with an equivalent 3-pole model to ensure all legs of power are switched according to the equipment’s electrical schematic.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $4,479.83
-65%$4,479.83
$1,567.94York S1-024-36143-000 Contactor
The York S1-024-36143-000 Contactor is a precision-engineered 3-pole HVAC contactor designed for high-demand residential and commercial environmental control systems. Operating with a 24V coil voltage, this component manages electrical loads up to 30 Amps, providing the inductive switching power necessary for reliable compressor and condenser fan operation. Built to rigorous OEM technical specifications, it serves as a direct replacement for failing units in York, Luxaire, and Coleman equipment, ensuring proper circuit isolation and preventing premature terminal pitting under heavy in-rush currents.
For service technicians, this York 24V 30A 3P contactor resolves common issues such as chattering, fused contacts, or coil burnout. The three-pole configuration allows for the simultaneous management of three separate electrical lines, making it an essential HVAC replacement part for multi-phase or high-capacity single-phase units. By utilizing this genuine York contactor, you maintain the original system tuning, ensuring the HVAC control circuit remains stable and compatible with the existing 24V transformer output.
Key Benefits- 3-Pole Switching: Handles three separate electrical lines simultaneously for consistent HVAC load management.
- 30 Amp Rated: Engineered to withstand the high starting torque and continuous running amps of condenser units.
- 24V Low Voltage Coil: Provides seamless integration with standard HVAC 24-volt control systems and thermostats.
- Compact Footprint: Standard mounting dimensions allow for rapid installation in existing control boxes without modifications.
- High Dielectric Strength: Minimized arcing risk during contact engagement, protecting downstream components from voltage transitions.
Is this contactor compatible with other brands?
Yes, while this is a York OEM part, it is functionally equivalent to many standard 30A 3-pole contactors with a 24V coil. However, verifying the physical mounting footprint is recommended for non-Johnson Controls equipment.
When should a contactor be replaced?
Replacement is necessary if you observe pitted silver contacts, a "humming" or "chattering" sound during engagement, or if the 21.6V–26.4V signal is present at the coil but the contacts fail to pull in.
Can I use a 2-pole contactor in place of this 3-pole unit?
No. For safety and circuit integrity, you must replace a 3-pole contactor with an equivalent 3-pole model to ensure all legs of power are switched according to the equipment’s electrical schematic.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
