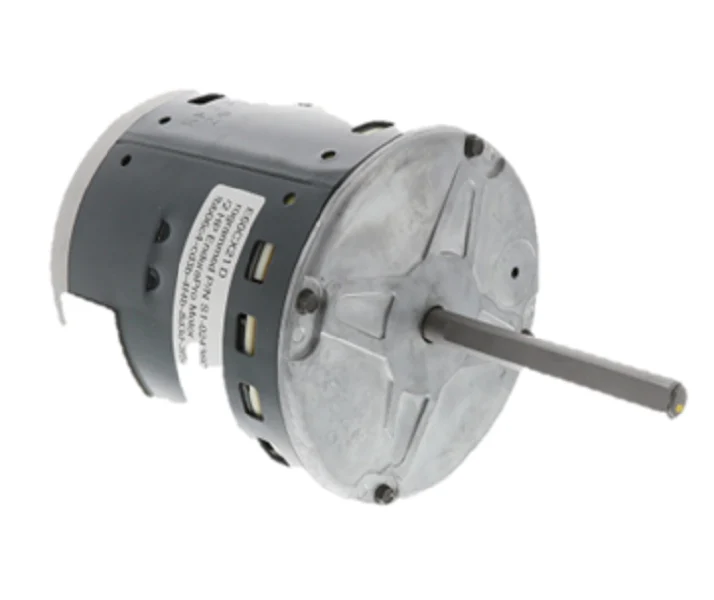

York S1-024-36015-000 Motor
The York S1-024-36015-000 is an OEM programmed ECM blower motor engineered for precision airflow control in residential air handlers and furnaces. As a 1/2 HP, 208-230Vac single-phase unit, this variable speed blower motor operates at a rated 1050 RPM to maintain consistent CFM against varying static pressures. Featuring a 48 NEMA frame size and a 1/2" x 4 1/2" shaft, this motor is a direct-drop HVAC replacement motor for specific Source 1 and York equipment. The electronically commutated motor design provides significant energy efficiency over standard PSC alternatives, utilizing an integrated control module to manage torque and speed. Designed with an Air Over (AO) enclosure and reversible rotation, it ensures optimal thermal management during high-demand cycles. Technicians can rely on this OEM York motor for exact fitment and communicative performance within the system's control logic, eliminating the need for complex field programming on-site.
Key Benefits- Factory Programmed: Pre-configured with specific torque and airflow parameters for seamless integration with York, Coleman, and Luxaire air handlers.
- Enhanced Efficiency: High-efficiency ECM technology reduces amperage draw and operational utility costs compared to induction motors.
- Quiet Operation: Variable speed ramping minimizes the "thump" of hard starts and reduces ambient noise during low-stage operation.
- Robust Construction: Features a NEMA 48 frame and "Air Over" cooling to maximize heat dissipation across the motor windings.
- OEM Precision: Direct replacement for part number S1-02436015000, ensuring the mounting and shaft dimensions match factory specifications perfectly.
Is this motor ready for immediate installation?
Yes, this is a programmed ECM, meaning the microprocessor is already flashed with the correct performance curves for compatible York units. It does not require additional field programming.
Can I use this motor to replace a standard 1/2 HP PSC motor?
No. This is an ECM designed to communicate with specific HVAC control boards. Replacing a PSC motor with an ECM requires different wiring and control signals not present in standard induction systems.
What should I check if the new motor won't start?
Ensure you have the correct line voltage (208-230V) at the 5-pin power connector and verifiable 24V control signals at the 16-pin harness. Check for high static pressure or a blocked filter that may be causing the motor to ramp down or trip on thermal overload.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $880.00
-65%$880.00
$308.00York S1-024-36015-000 Motor
The York S1-024-36015-000 is an OEM programmed ECM blower motor engineered for precision airflow control in residential air handlers and furnaces. As a 1/2 HP, 208-230Vac single-phase unit, this variable speed blower motor operates at a rated 1050 RPM to maintain consistent CFM against varying static pressures. Featuring a 48 NEMA frame size and a 1/2" x 4 1/2" shaft, this motor is a direct-drop HVAC replacement motor for specific Source 1 and York equipment. The electronically commutated motor design provides significant energy efficiency over standard PSC alternatives, utilizing an integrated control module to manage torque and speed. Designed with an Air Over (AO) enclosure and reversible rotation, it ensures optimal thermal management during high-demand cycles. Technicians can rely on this OEM York motor for exact fitment and communicative performance within the system's control logic, eliminating the need for complex field programming on-site.
Key Benefits- Factory Programmed: Pre-configured with specific torque and airflow parameters for seamless integration with York, Coleman, and Luxaire air handlers.
- Enhanced Efficiency: High-efficiency ECM technology reduces amperage draw and operational utility costs compared to induction motors.
- Quiet Operation: Variable speed ramping minimizes the "thump" of hard starts and reduces ambient noise during low-stage operation.
- Robust Construction: Features a NEMA 48 frame and "Air Over" cooling to maximize heat dissipation across the motor windings.
- OEM Precision: Direct replacement for part number S1-02436015000, ensuring the mounting and shaft dimensions match factory specifications perfectly.
Is this motor ready for immediate installation?
Yes, this is a programmed ECM, meaning the microprocessor is already flashed with the correct performance curves for compatible York units. It does not require additional field programming.
Can I use this motor to replace a standard 1/2 HP PSC motor?
No. This is an ECM designed to communicate with specific HVAC control boards. Replacing a PSC motor with an ECM requires different wiring and control signals not present in standard induction systems.
What should I check if the new motor won't start?
Ensure you have the correct line voltage (208-230V) at the 5-pin power connector and verifiable 24V control signals at the 16-pin harness. Check for high static pressure or a blocked filter that may be causing the motor to ramp down or trip on thermal overload.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
