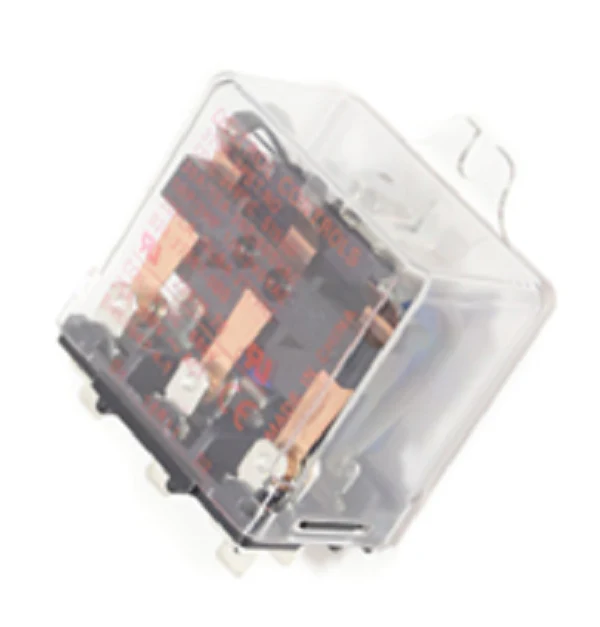

York S1-024-27597-000 Relay
The York S1-024-27597-000 Relay is a specialized 24V DC control relay engineered for precise switching in high-efficiency HVAC equipment. Designed with a 3PST (Triple Pole Single Throw) contact configuration, this OEM component is critical for managing multi-circuit loads in H BC Series 12SEER X3 Split Air Conditioners. As a Source 1 technical replacement, it ensures seamless integration with Style G residential units, providing the heavy-duty reliability required for demanding cycle frequencies. This switching relay serves as a direct upgrade or replacement for logic boards and power distribution circuits where a low-voltage DC trigger must actuate multiple line-voltage branches. By utilizing three-pole operation, technicians can consolidate control points, reducing wiring complexity in the field. This HVAC control relay maintains strict electrical tolerances to prevent arcing and ensure stable signal transmission across the system’s sequences.
Key Benefits:- OEM Compatibility: Specifically designed for York, Coleman, and Luxaire H BC Series split systems for an exact fit.
- 3PST Logic: Triple-pole architecture allows for the simultaneous control of three separate circuits from a single 24V DC signal.
- HVAC Industrial Grade: Built to withstand the thermal and electrical stress of 12 SEER air conditioning applications.
- Simplified Integration: Direct replacement for part number S1-02427597000, requiring no field modifications to the existing mounting bracket or wiring harness.
- Can I use an AC relay to replace this DC model? No, this is a 24V DC relay. Using an AC coil relay will cause chatter or failure of the DC control signal from the logic board.
- What does 3PST mean for my wiring? It stands for Triple Pole Single Throw, meaning it can close three separate electrical paths at once when the coil is energized.
- Is this compatible with Style G units? Yes, this specific York control relay is the factory-specified part for Style G revisions of the X3 split series.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
