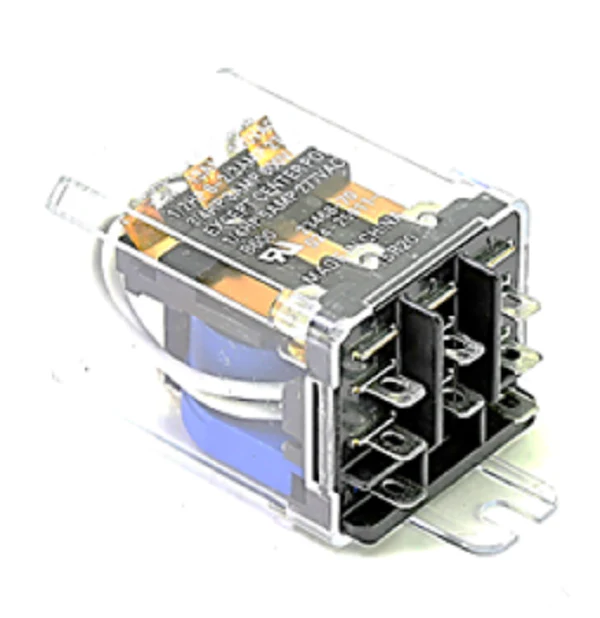

York S1-024-25911-700 Relay
The York S1-024-25911-700 Relay is a heavy-duty industrial component designed for precise switching within 24V control circuits. This 3PST relay configuration allows contractors to manage three separate electrical poles simultaneously with a single 24V signal, making it a critical HVAC replacement relay for complex sequencing and blower motor control. Engineered to operate across both 50/60 Hz frequencies, this unit maintains stable contact closure even during voltage fluctuations common in residential and light commercial settings. As a direct OEM component, the York S1-024-25911-700 eliminates the alignment issues associated with generic universal parts, ensuring the mechanical coil and armature assembly provide rapid response times. This specialized 24V control relay is built to handle inductive loads without excessive arcing, preserving the integrity of the broader control board and associated wiring. Its robust construction is ideal for high-cycle applications where reliability is non-negotiable for system uptime.
Key Benefits
- Triple Pole Single Throw (3PST) Configuration: Enables simultaneous control of three distinct circuits, simplifying complex wiring tasks for field technicians.
- Dual Frequency Compatibility: Rated for both 50Hz and 60Hz systems, providing flexibility across various power grid requirements and equipment types.
- OEM Precision Fit: Designed specifically for York, Luxaire, and Coleman equipment to ensure electrical impedance and physical mounting points match factory specifications.
- Standard 24V Coil: Integrates seamlessly with existing low-voltage thermostats and furnace control boards without the need for auxiliary transformers.
Common Questions
Can the York S1-024-25911-700 be used as a substitute for a 2PST relay?
While you can technically leave one pole unused, it is always recommended to verify the amp ratings on the contacts and the coil resistance against your specific equipment schematics to ensure proper load handling.
What is the primary function of a 3PST relay in an HVAC setting?
In most York air handlers and furnaces, this relay is used to isolate or engage multiple high-voltage components, such as multi-speed blower motors or electric heating elements, simultaneously when a 24V signal is received from the thermostat.
Is this relay compatible with international 50Hz electrical systems?
Yes, the S1-024-25911-700 is rated for both 50/60 Hz, ensuring the coil operates efficiently without overheating or humming in varying regional electrical environments.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
