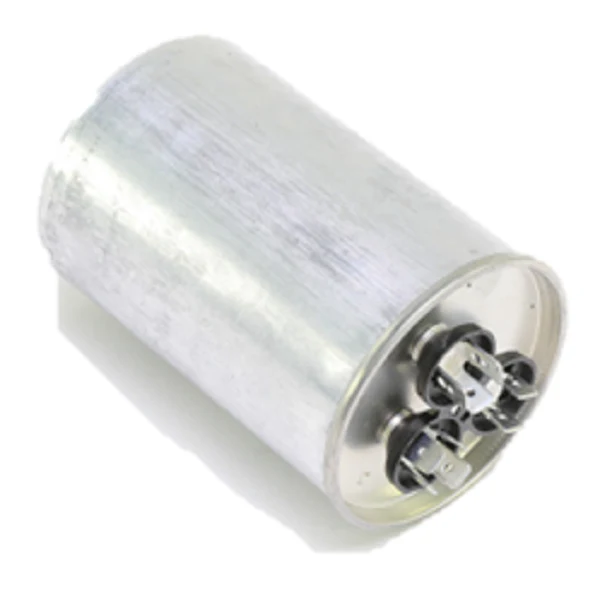

York S1-024-25033-700 Run Capacitor
Professional-grade York S1-024-25033-700 Run Capacitor designed for precision motor phase-shifting in residential and commercial condensing units. This 60/5 MFD 370V dual run capacitor integrates two separate capacitors into a single round aluminum housing, providing the necessary phase angle offset for both the compressor (60 microfarads) and the condenser fan motor (5 microfarads). Operating at 370 Vac with a 50/60 Hz frequency, this OEM component ensures optimal torque during the start-up cycle and maintains stable running current to minimize heat dissipation within motor windings. Built to withstand demanding HVACR environments, this dual round run capacitor helps protect against premature motor failure by filtering out spikes and maintaining consistent capacitance across the terminals. For technicians seeking a drop-in HVAC replacement capacitor, this unit offers the exact form factor and microfarad ratings required to restore factory-spec efficiency to York and Luxaire forced-air systems.
Key Benefits:
- Dual-Action Performance: Simultaneously supports the compressor and fan motor with a 60/5 uF rating.
- High Dielectric Strength: Rated for 370 volts to handle line voltage fluctuations without dielectric breakdown.
- Efficient Heat Dissipation: Round aluminum casing designed for superior thermal management in high-ambient outdoor sections.
- Broad Compatibility: Direct OEM replacement for the S1-024-25033-700 part number, ensuring terminal alignment and secure mounting.
Common Questions:
- Can I use a 440V capacitor instead of this 370V unit? Yes, a higher voltage rating is an acceptable upgrade as long as the 60/5 MFD capacitance remains identical, but you should never go lower than the original 370V.
- How do I identify a failing York capacitor? Look for a "mushroomed" or bulged top, oil leakage, or use a multimeter to check if the microfarad readings have drifted more than 5%-10% from the spec.
- Which terminal goes to which component? Use the labeled terminals: 'Herm' for the compressor, 'Fan' for the motor, and 'C' for the common line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $57.02
-65%$57.02
$19.96York S1-024-25033-700 Run Capacitor
Professional-grade York S1-024-25033-700 Run Capacitor designed for precision motor phase-shifting in residential and commercial condensing units. This 60/5 MFD 370V dual run capacitor integrates two separate capacitors into a single round aluminum housing, providing the necessary phase angle offset for both the compressor (60 microfarads) and the condenser fan motor (5 microfarads). Operating at 370 Vac with a 50/60 Hz frequency, this OEM component ensures optimal torque during the start-up cycle and maintains stable running current to minimize heat dissipation within motor windings. Built to withstand demanding HVACR environments, this dual round run capacitor helps protect against premature motor failure by filtering out spikes and maintaining consistent capacitance across the terminals. For technicians seeking a drop-in HVAC replacement capacitor, this unit offers the exact form factor and microfarad ratings required to restore factory-spec efficiency to York and Luxaire forced-air systems.
Key Benefits:
- Dual-Action Performance: Simultaneously supports the compressor and fan motor with a 60/5 uF rating.
- High Dielectric Strength: Rated for 370 volts to handle line voltage fluctuations without dielectric breakdown.
- Efficient Heat Dissipation: Round aluminum casing designed for superior thermal management in high-ambient outdoor sections.
- Broad Compatibility: Direct OEM replacement for the S1-024-25033-700 part number, ensuring terminal alignment and secure mounting.
Common Questions:
- Can I use a 440V capacitor instead of this 370V unit? Yes, a higher voltage rating is an acceptable upgrade as long as the 60/5 MFD capacitance remains identical, but you should never go lower than the original 370V.
- How do I identify a failing York capacitor? Look for a "mushroomed" or bulged top, oil leakage, or use a multimeter to check if the microfarad readings have drifted more than 5%-10% from the spec.
- Which terminal goes to which component? Use the labeled terminals: 'Herm' for the compressor, 'Fan' for the motor, and 'C' for the common line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
