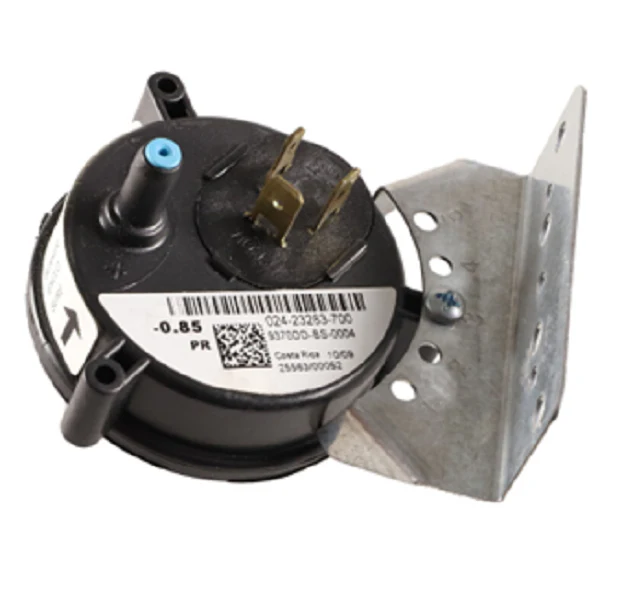

York S1-024-23283-700 Pressure Switch
For service technicians maintaining York, Coleman, or Luxaire equipment, the York S1-024-23283-700 Pressure Switch is the original equipment manufacturer (OEM) solution for verifying proper combustion airflow. This differential air pressure switch is factory-calibrated to a precise .85 IWC (Inches Water Column) set point, ensuring the inducer motor establishes a sufficient vacuum before the ignition sequence initiates. Designed for HVAC draft proving, this switch acts as a critical safety interlock that prevents burner operation during venting obstructions, inducer failure, or heat exchanger compromises.
Built with a high-integrity diaphragm and corrosion-resistant electrical contacts, the S1-024-23283-700 is engineered to withstand the thermal cycling and humidity typical of condensing gas furnaces. It features standard 1/4-inch barb connections for vacuum tubing and spade terminals for quick integration into the furnace control circuit. Using a genuine York replacement part eliminates the calibration drift often found in universal switches, maintaining the AHRI-certified performance of the heating system.
Key Benefits for Technicians:- Precise .85 IWC Calibration: Maintains OEM safety standards and prevents nuisance tripping caused by inaccurate universal pressure settings.
- OEM Compatibility: Direct-fit replacement for York S1-024-23283-700, as well as specific Luxaire and Coleman models.
- Enhanced Safety Logic: Proves inducer motor operation and venting integrity to prevent carbon monoxide risks.
- Durable Diaphragm Construction: High-grade materials resist hardening and rupturing in high-efficiency 90% plus furnace applications.
- Simplified Installation: Standard HVAC pressure switch mounting footprint and terminal layout reduce diagnostic and repair time.
What causes a York pressure switch to stay open?
An open circuit is often caused by a blocked flue pipe, a cracked pressure switch hose, or a failing inducer motor that cannot pull the required .85 IWC vacuum. Always inspect the collector box ports for debris before replacing the switch.
Can I use a universal switch instead of the S1-024-23283-700?
While universal switches exist, they often require manual calibration. Using the York OEM pressure switch ensures the system operates exactly at the 0.85" WC threshold specified by the manufacturer for safe combustion.
How do I test this switch with a manometer?
Connect your manometer in-line with the air pressure switch while the inducer is running. If the vacuum exceeds .85 IWC but the switch fails to close the circuit, the internal diaphragm or electrical contacts have failed.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
