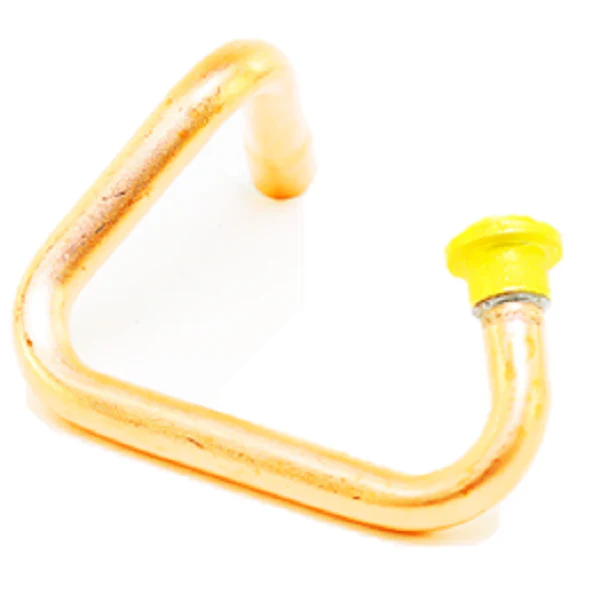

York S1-023-22469-000 Assembly
The York S1-023-22469-000 Assembly is a high-grade liquid line copper assembly engineered for precise refrigerant management in residential and light commercial condensers. As an OEM Johnson Controls replacement part, this component ensures exact fitment and maintains the structural integrity required for high-pressure R-410A systems. The S1-023-22469-000 is fabricated with factory-spec bends and durable brazed joints to minimize flow restriction and eliminate the risk of vibration-induced fatigue. For technicians performing unit repairs, this HVAC copper tubing assembly preserves the critical subcooling parameters necessary for optimal expansion valve performance. Incorporating this specific refrigerant liquid line into your service ensures internal cleanliness standards are met, preventing debris from entering the metering device. When replacing damaged or corroded lines, using an assembly with the correct wall thickness and alloy composition is essential for long-term system reliability and efficient heat transfer cycles across the liquid circuit.
Key Benefits for Technicians:
- OEM Precision: Pre-formed geometry eliminates the need for manual bending, reducing installation time and preventing copper kinking.
- Heavy-Duty Construction: High-purity deoxidized copper provides superior resistance to corrosion and pressure spikes common in modern cooling cycles.
- Optimized Refrigerant Flow: Clean internal surfaces and smooth transitions reduce pressure drop across the liquid side of the system.
- Direct Fit Compatibility: Specifically designed for York and Source 1 equipment to match original equipment specifications.
Common Questions:
Is the S1-023-22469-000 compatible with older R-22 systems?
While the copper alloy is compatible, the fittings and internal volume are specifically engineered for the pressure ratings associated with modern York condensers. Always verify the specific unit model to ensure the line size matches.
Does this assembly come pre-charged or sealed?
This is a mechanical copper assembly. It is typically shipped capped to maintain internal cleanliness but must be brazed into the system and evacuated following standard HVAC service procedures.
Can I use a universal line instead of this OEM assembly?
While copper can be field-fabricated, this assembly ensures the exact reach and clearance required within the cabinet, preventing contact with other components that could cause rub-through leaks.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
