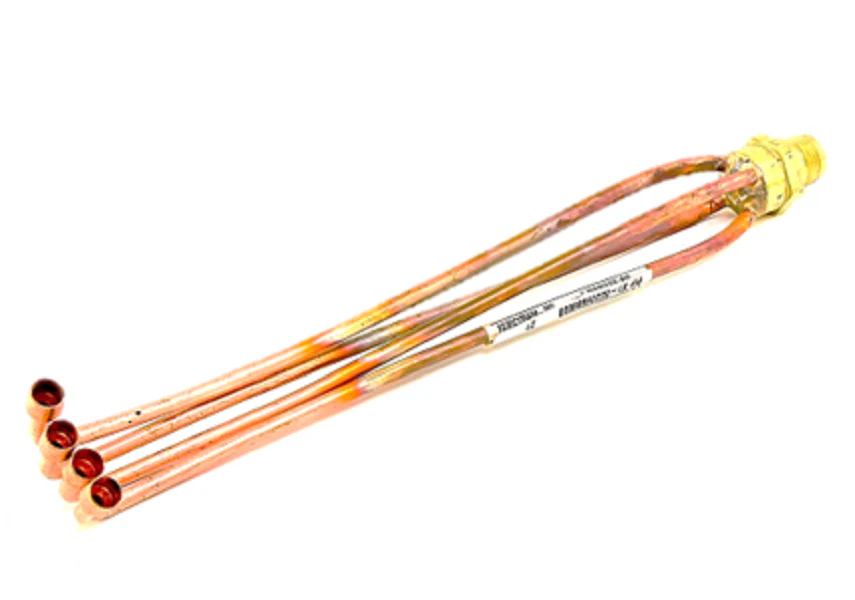

York S1-022-09089-000 Assembly
The York S1-022-09089-000 Assembly is a precision-engineered 4 Tube Distributor Assembly designed for specific evaporator coil configurations in residential and light commercial HVAC systems. Featuring 3/8-inch OD tubing with a 9.42-inch length, this OEM component ensures balanced refrigerant distribution across the coil circuits to maintain optimal superheat and prevent liquid slugging. When performing a York evaporator coil repair, using this genuine S1-022-09089-000 distributor is critical for maintaining the factory-rated SEER performance and pressure drop specifications. The assembly is constructed from high-grade copper to withstand vibration and thermal cycling common in R-410A refrigeration cycles. Technicians should verify York unit compatibility via the data plate before installation, as proper refrigerant flow control depends on the exact orifice sizing and feeder tube geometry provided by this specific HVAC replacement part. This assembly ensures a reliable brazed connection and eliminates the common failure points found in generic aftermarket distribution manifolds.
Key Benefits- OEM Precision: Direct S1-022-09089-000 replacement ensures exact fitment without the need for field modifications or tube bending.
- Balanced Flow: The 4-tube design provides uniform refrigerant feed to all coil circuits, maximizing heat transfer efficiency.
- Industrial Durability: Heavy-wall copper construction resists fatigue and brazing stress during high-pressure HVAC system maintenance.
- System Reliability: Corrects uneven cooling issues and high-head pressure symptoms caused by fouled or damaged distributors.
Is the S1-022-09089-000 compatible with R-22 systems?
While physically compatible with copper lines, this distributor is primarily engineered for the flow characteristics and pressures of modern R-410A systems. Always check your specific coil model for orifice compatibility.
Does this assembly include the nozzle or orifice?
This part number refers to the 4-tube distributor assembly. Technicians should verify if the internal orifice or nozzle must be reused or replaced separately based on the total tonnage of the condenser.
What is the primary cause of distributor failure?
Most failures result from debris or non-condensables clogging the feeder tubes, or vibration-induced stress cracks at the distributor throat. Replacing the entire assembly is the standard practice to ensure long-term circuit balance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $76.07
-65%$76.07
$26.62York S1-022-09089-000 Assembly
The York S1-022-09089-000 Assembly is a precision-engineered 4 Tube Distributor Assembly designed for specific evaporator coil configurations in residential and light commercial HVAC systems. Featuring 3/8-inch OD tubing with a 9.42-inch length, this OEM component ensures balanced refrigerant distribution across the coil circuits to maintain optimal superheat and prevent liquid slugging. When performing a York evaporator coil repair, using this genuine S1-022-09089-000 distributor is critical for maintaining the factory-rated SEER performance and pressure drop specifications. The assembly is constructed from high-grade copper to withstand vibration and thermal cycling common in R-410A refrigeration cycles. Technicians should verify York unit compatibility via the data plate before installation, as proper refrigerant flow control depends on the exact orifice sizing and feeder tube geometry provided by this specific HVAC replacement part. This assembly ensures a reliable brazed connection and eliminates the common failure points found in generic aftermarket distribution manifolds.
Key Benefits- OEM Precision: Direct S1-022-09089-000 replacement ensures exact fitment without the need for field modifications or tube bending.
- Balanced Flow: The 4-tube design provides uniform refrigerant feed to all coil circuits, maximizing heat transfer efficiency.
- Industrial Durability: Heavy-wall copper construction resists fatigue and brazing stress during high-pressure HVAC system maintenance.
- System Reliability: Corrects uneven cooling issues and high-head pressure symptoms caused by fouled or damaged distributors.
Is the S1-022-09089-000 compatible with R-22 systems?
While physically compatible with copper lines, this distributor is primarily engineered for the flow characteristics and pressures of modern R-410A systems. Always check your specific coil model for orifice compatibility.
Does this assembly include the nozzle or orifice?
This part number refers to the 4-tube distributor assembly. Technicians should verify if the internal orifice or nozzle must be reused or replaced separately based on the total tonnage of the condenser.
What is the primary cause of distributor failure?
Most failures result from debris or non-condensables clogging the feeder tubes, or vibration-induced stress cracks at the distributor throat. Replacing the entire assembly is the standard practice to ensure long-term circuit balance.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
