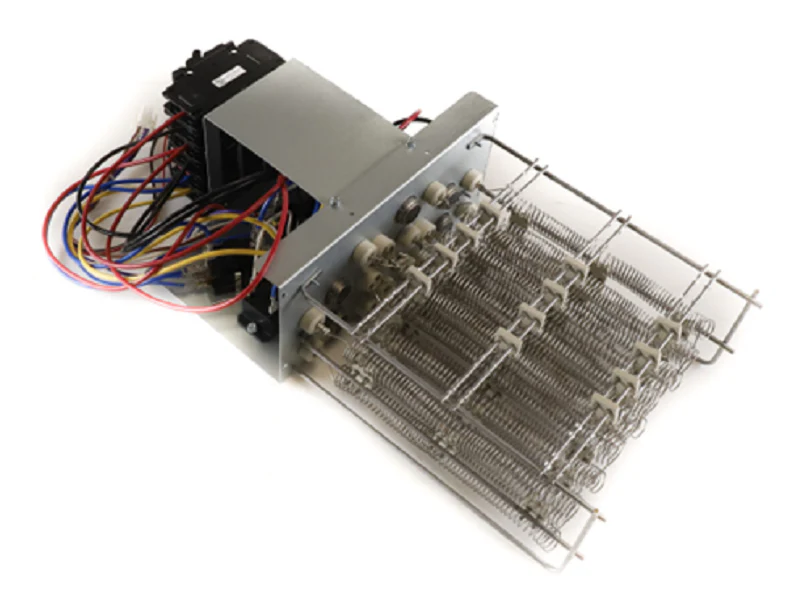

York S1-6HK16502506 Heat Kit
The York S1-6HK16502506 is a professional-grade 25kW electric heat kit engineered for seamless integration with York, Luxaire, and Coleman air handlers, specifically designed for 48D and 60D models. As a veteran-preferred HVAC replacement part, this 208/230V single-phase unit features an integrated 100 Amp circuit breaker to ensure localized overcurrent protection and simplified field wiring. The heavy-gauge nichrome heating elements are staged to provide consistent discharge temperatures while minimizing thermal stress on the air handler cabinet. Utilizing a polarized 6-pin plug-and-play connector, this OEM York heat kit eliminates the risk of incorrect wiring, making it the standard for emergency heat backup in residential and light commercial heat pump applications. For technicians handling new construction or high-capacity system retrofits, the 6HK series heat kit delivers the high-wattage performance required for zero-degree design temperatures without compromising system safety or cabinet clearances.
Key Benefits- Integrated Safety: Factory-installed 100 Amp breakers provide necessary disconnect and circuit protection directly at the unit.
- Precise Fit: Genuine S1-6HK16502506 OEM design ensures proper airflow clearances and prevents the nuisance tripping common with aftermarket kits.
- Rapid Installation: The polarized 6-pin wiring harness allows for a quick "drop-in" setup, syncing immediately with the control board.
- High-Capacity Heating: 25kW output provides sufficient supplemental heat for 4-ton and 5-ton air handlers in cold-climate zones.
- Durable Construction: Corrosion-resistant mounting plate and high-grade heating coils are built to withstand high-static pressure environments.
Which air handler models are compatible with this 25kW kit?
This kit is primarily designed for York/Johnson Controls family air handlers, including AHR, AHE, AHV, and specific 48D/60D series units. Always verify the cabinet nameplate for the approved 6HK series revision.
Does this kit require a single-point power supply kit?
For high-wattage 25kW installations, technicians often use multiple circuits. If your project requires a single-feed line, a separate single-point power accessory may be necessary depending on local electrical codes.
Can this be used for horizontal-right airflow configurations?
Yes, the 6HK series is approved for multi-position installations, though high-wattage kits like this 25kW model require specific blower speed tap adjustments to maintain proper temperature rise.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
