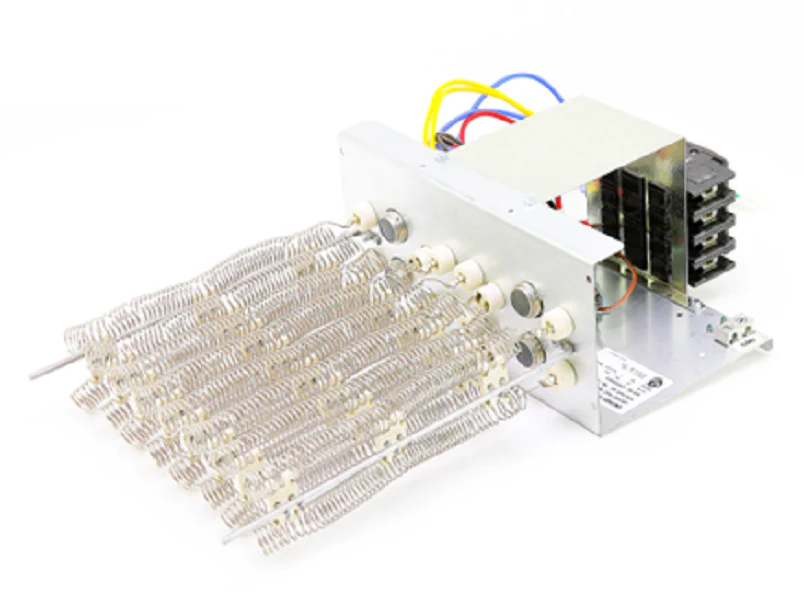

York S1-6HK16502006 Heat Kit
The York S1-6HK16502006 Heat Kit is a field-installed 20kW electric heat kit designed specifically for integration with compatible York, Luxaire, and Coleman air handlers including AHR, AHE, AHV, and RFCX models. Engineered for 208/230V, single-phase (1PH) applications, this assembly features a dual-element design providing a robust 20,000 watts of auxiliary or emergency heating. As a genuine OEM replacement part, it ensures precise fitment within the discharge duct, maintaining the integrity of the original air handler equipment without needing extensive field modifications.
This thermal solution includes an integrated circuit breaker to provide essential overcurrent protection and a localized service disconnect as required by UL 1995 standards. The unit utilizes nichrome heating elements supported by a durable "ram horn" ceramic frame for superior airflow throughput and heat dissipation. Installation is streamlined via a polarized 6-pin plug-and-play connector, ensuring correct electrical phasing and control communication between the handler and the secondary heat source.
- High-Capacity Output: Delivers 20kW (approximately 68,000 BTU) for supplemental or primary heating in larger residential or light commercial footprints.
- Built-in Safety: Includes factory-installed breakers to protect the internal wiring and provide a safe service disconnect point for technicians.
- Seamless Integration: Features a polarized 6-pin socket for quick electrical connection to the York air handler control board.
- Professional Construction: Built with high-grade ceramic insulators and heavy-duty heating coils for reliable performance under high static pressure.
Common Questions
Is this heat kit compatible with all York air handlers?
This 20kW heat kit is primarily designed for the 6HK series used in AHR, AHE, AHV, and RFCX air handlers. Always verify the cabinet size and minimum blower speed requirements on the unit's rating plate before installation.
Does this unit require a separate power supply for the air handler?
The S1-6HK16502006 with breaker typically allows for single-point power entry for both the air handler and the heat kit, but always check local electrical codes and the equipment submittal for specific wiring requirements.
What is the purpose of the integrated breaker?
The integrated breaker acts as a manual disconnect and protects the heating element assembly from electrical faults, ensuring the HVAC system remains safe during operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
