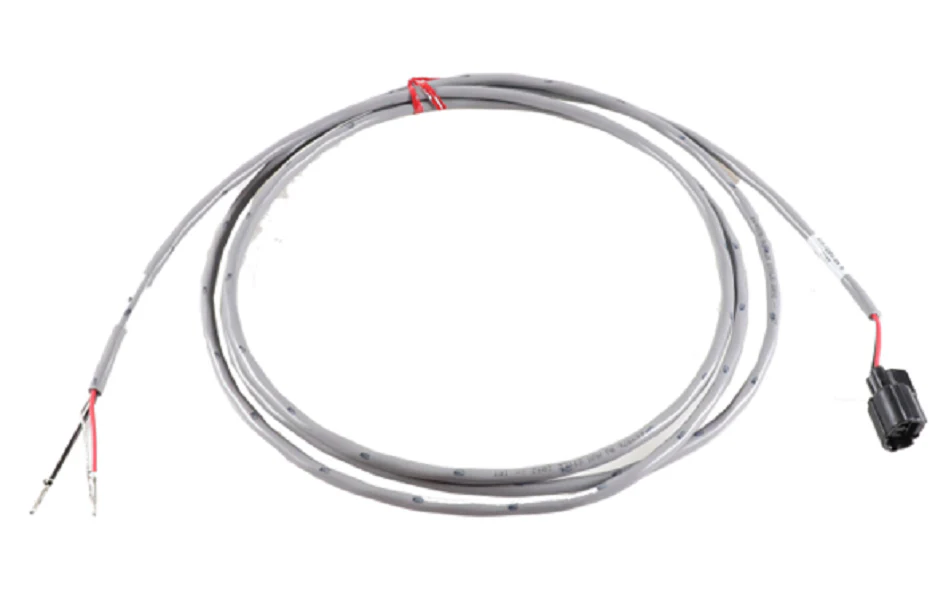

York 575-72382-306 Wiring Harness
The York 575-72382-306 Wiring Harness (also identified as S1-575-72382-306) is a heavy-duty 2-conductor electrical assembly engineered for reliable signal transmission and power distribution in York and Johnson Controls equipment. Featuring a total length of 8.3 feet, this harness allows for versatile routing across large chassis cabinets, ensuring the 2 conductor HVAC harness reaches its designated termination points without tension. As an OEM component, it eliminates the risks associated with manual splicing, such as high resistance or terminal failure. The wiring is gauged specifically to handle standard control circuit loads, providing the durability required for high-vibration environments typical of air handlers and condensers. For contractors, using this York replacement wiring parts solution ensures that the internal resistance and connectivity meet factory specifications. This 8.3ft wiring harness is critical for restoring system communication between control boards and peripheral sensors or safety switches in commercial and residential configurations.
Key Benefits for the Technician
- Factory Precision: Pre-terminated connectors ensure modular "plug-and-play" installation, reducing time spent on the job site.
- Optimal Length: The 8.3-foot reach provides ample slack for proper wire management and zip-tie securing within the cabinet.
- OEM Integrity: Maintains the exact electrical characteristics required for sensitive diagnostic circuits and low-voltage control loops.
- High-Grade Insulation: Designed to withstand the thermal fluctuations and exposure typical of HVACR internal compartments.
Common Questions
Is this harness compatible with multiple York models?
Yes, the S1-575-72382-306 is used across various York, Luxaire, and Coleman platforms. Always verify the part number in your specific equipment's technical guide.
What is the conductor configuration?
This is a 2-conductor (2-wire) assembly designed for simple circuit completion or sensor feedback loops.
Does this include the terminal connectors?
Yes, this York 575-72382-306 Wiring Harness comes with factory-crimped terminals for direct connection to the control board or components.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
