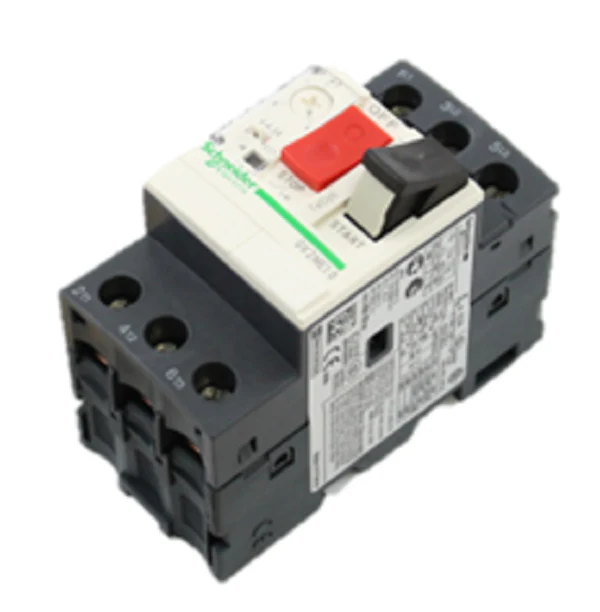

York 024-33169-000 Overload
The York 024-33169-000 Overload is an essential OEM safety component engineered for precise electrical protection in industrial and commercial HVAC systems. This thermal-magnetic overload relay features an adjustable amperage setting of 4/6.3A, providing a critical buffer against motor burnouts, phased imbalances, and dangerous overcurrent conditions. Designed for seamless integration with York contactors, the S1-024-33169-000 utilizes bimetallic elements to monitor thermal accumulation, ensuring the circuit is interrupted well before winding insulation reaches critical failure temperatures.
Built for the rigors of field service, this unit includes a manual reset mechanism, allowing technicians to verify that the root cause of the trip—such as a locked rotor or voltage sag—has been remediated before restoring power. The compact design facilitates quick installation within standard control cabinets, while the high-accuracy trip curve minimizes nuisance tripping during startup inrush. For contractors maintaining York chiller parts or rooftop units, this genuine HVAC overload protector is the standard for maintaining UL-certified system integrity and electrical safety.
Key Benefits- Adjustable 4/6.3 Amp Range: Allows for fine-tuning based on the specific Full Load Amps (FLA) of the motor or compressor.
- Thermal-Magnetic Protection: Combines reliable bimetallic heat sensing with magnetic trip capabilities for fast response to severe faults.
- Manual Reset Mechanism: Ensures thorough system inspection by the technician before operational recovery, preventing repetitive stress on the motor.
- OEM Compatibility: Guaranteed fit for York S1-024-33169-000 specifications, ensuring auxiliary contacts interface correctly with existing control logic.
- Industrial Durability: Resists vibration and ambient temperature fluctuations common in heavy-duty mechanical rooms.
What causes this overload to trip repeatedly?
Consistent tripping typically indicates a mechanical bind in the motor, a loose electrical connection causing heat, or a genuine overcurrent state. Ensure the dial is set precisely to the motor's FLA rating as listed on the nameplate.
Can I replace a different brand's 4/6.3A relay with this York model?
While the amperage range may match, this part is specifically designed for the mounting profile and pin configuration of York-style contactors. Always verify the physical footprint and terminal layout before attempting a cross-brand retrofit.
Does this unit trip instantly?
No, like most thermal overloads, it follows a specific trip curve. It permits brief inrush current during motor startup but will interrupt the circuit if the current remains above the set threshold for a duration that could cause thermal damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
