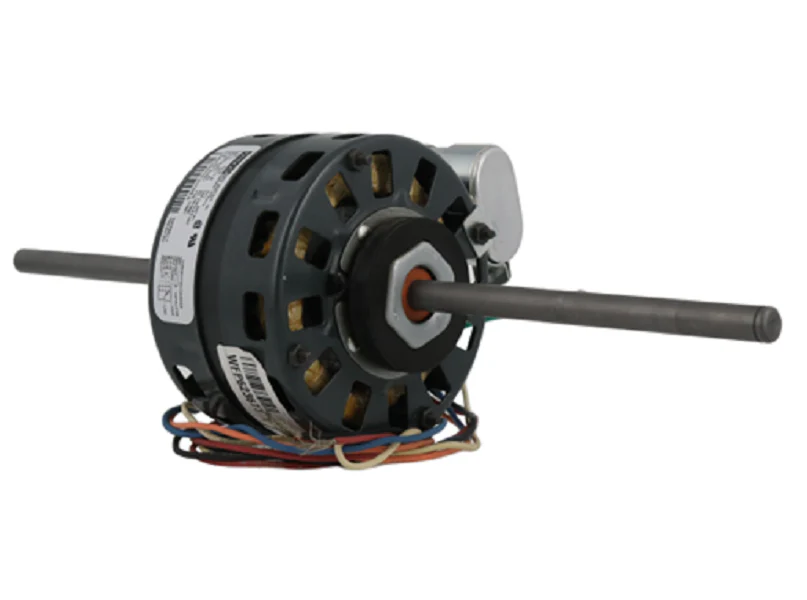

Williams P623677 Motor

The Williams P623677 Motor is a precision-engineered OEM replacement blower motor designed specifically for Williams Comfort Products heating systems. This heavy-duty 1/8 HP motor operates on standard 115V single-phase power, delivering a consistent 1550 RPM output across its 4-speed furnace motor configuration. Designed for high-static pressure applications, this PSC motor ensures optimal airflow through the heat exchanger, maximizing heat transfer efficiency in wall furnaces and direct vent systems. Its multi-speed capability allows for fine-tuning based on the specific CFM requirements of the unit, reducing cycling noise and improving air distribution throughout the space. The robust housing and permanently lubricated bearings contribute to long-term performance under demanding thermal conditions.

Key Benefits:

• Four-Speed Versatility: Direct-drive 4-speed functionality allows for precise CFM adjustment to match the specific requirements of Williams wall furnaces.
• Optimized Performance: Operates at 1550 RPM to maintain consistent static pressure and reliable air circulation.
• Direct Fit: Genuine Williams P623677 engineering ensures correct shaft length and furnace blower alignment for rapid field replacement.
• High-Efficiency Single Phase: Standard 115V / 1 Ph electrical requirements make it a straightforward drop-in for most residential and light commercial units.

Common Questions:

• Will this motor replace a single-speed blower? Yes, the Williams P623677 can be used for single-speed applications by selecting the appropriate high or low-speed lead, providing flexibility for different heater models.
• What are the main causes for a blower motor failure? Typical issues include a failed capacitor, blocked filters causing overheating, or seized bearings due to dust accumulation on the squirrel cage.
• Can I use a higher horsepower motor instead? It is critical to stick with the 1/8 HP rating to prevent overloading the control board and to ensure the fan wheel speed remains within safe operating limits.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
