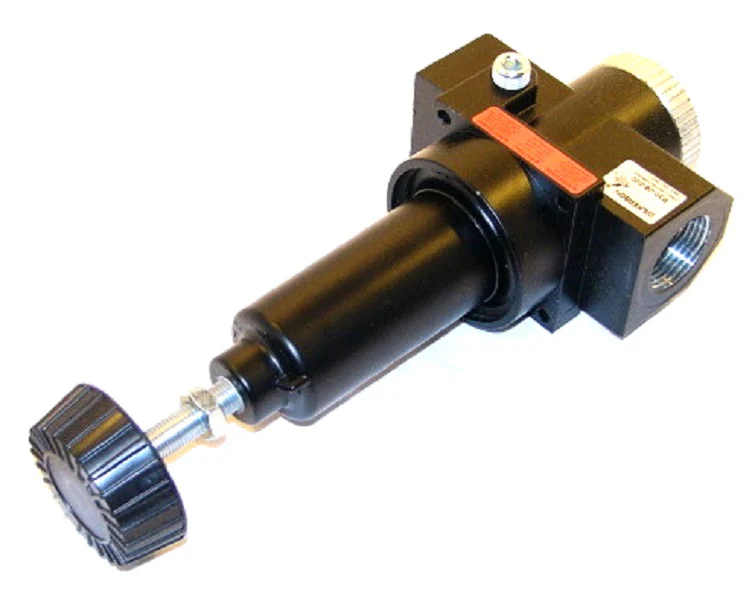

Wilkerson R30-08-000 Regulator
The Wilkerson R30-08-000 is a heavy-duty, high-flow compressed air regulator designed for rigorous industrial pneumatic applications. Built with a robust zinc body and a balanced valve design, this 1" NPT air regulator provides superior pressure stability even under fluctuating flow demands. Featuring a 500 SCFM flow capacity and a maximum 300 PSIG supply pressure, it is the standard choice for contractors managing high-volume mainlines or large pneumatic tools. The unit operates via a piston-style mechanism which offers increased durability compared to standard diaphragm models, ensuring consistent 10-125 PSIG adjustable pressure control. With two 1/4" NPT gauge ports, technicians can easily monitor downstream pressure or install supplemental sensing equipment. This self-relieving regulator automatically vents downstream overpressure, making it an essential component for system safety and precise pneumatic execution in professional HVACR and mechanical workshops.
Key Benefits:- High-Flow Performance: Delivers up to 500 SCFM, capable of supporting large-scale industrial air distribution systems without significant pressure drops.
- Durable Construction: The zinc die-cast body and piston-actuated design provide long-term reliability in harsh environments.
- Precise Pressure Control: Balanced valve minimizes the effect of inlet pressure variations on the regulated setpoint.
- Ease of Integration: Features standard 1" NPT female ports and dual gauge ports for flexible mounting and monitoring configurations.
What is the difference between a relieving and non-relieving regulator?
The R30-08-000 is a relieving model, meaning it allows trapped downstream air to escape when the pressure setting is reduced, preventing system lockup. Non-relieving models require downstream venting to adjust the setpoint lower.
Can this regulator handle moist or lubricated air?
While the nitrile seals are compatible with standard pneumatic oils, we recommend installing a filter upstream to prevent debris from fouling the balanced valve assembly and ensuring optimal flow performance.
Does this unit come with a pressure gauge?
This specific model includes two 1/4" ports for gauge installation, but the gauge itself is typically sold separately to allow technicians to choose the specific pressure range and face size required for their application.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $273.44
-65%$273.44
$95.70Wilkerson R30-08-000 Regulator
The Wilkerson R30-08-000 is a heavy-duty, high-flow compressed air regulator designed for rigorous industrial pneumatic applications. Built with a robust zinc body and a balanced valve design, this 1" NPT air regulator provides superior pressure stability even under fluctuating flow demands. Featuring a 500 SCFM flow capacity and a maximum 300 PSIG supply pressure, it is the standard choice for contractors managing high-volume mainlines or large pneumatic tools. The unit operates via a piston-style mechanism which offers increased durability compared to standard diaphragm models, ensuring consistent 10-125 PSIG adjustable pressure control. With two 1/4" NPT gauge ports, technicians can easily monitor downstream pressure or install supplemental sensing equipment. This self-relieving regulator automatically vents downstream overpressure, making it an essential component for system safety and precise pneumatic execution in professional HVACR and mechanical workshops.
Key Benefits:- High-Flow Performance: Delivers up to 500 SCFM, capable of supporting large-scale industrial air distribution systems without significant pressure drops.
- Durable Construction: The zinc die-cast body and piston-actuated design provide long-term reliability in harsh environments.
- Precise Pressure Control: Balanced valve minimizes the effect of inlet pressure variations on the regulated setpoint.
- Ease of Integration: Features standard 1" NPT female ports and dual gauge ports for flexible mounting and monitoring configurations.
What is the difference between a relieving and non-relieving regulator?
The R30-08-000 is a relieving model, meaning it allows trapped downstream air to escape when the pressure setting is reduced, preventing system lockup. Non-relieving models require downstream venting to adjust the setpoint lower.
Can this regulator handle moist or lubricated air?
While the nitrile seals are compatible with standard pneumatic oils, we recommend installing a filter upstream to prevent debris from fouling the balanced valve assembly and ensuring optimal flow performance.
Does this unit come with a pressure gauge?
This specific model includes two 1/4" ports for gauge installation, but the gauge itself is typically sold separately to allow technicians to choose the specific pressure range and face size required for their application.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Wilkerson R30-08-000 is a heavy-duty, high-flow compressed air regulator designed for rigorous industrial pneumatic applications. Built with a robust zinc body and a balanced valve design, this 1" NPT air regulator provides superior pressure stability even under fluctuating flow demands. Featuring a 500 SCFM flow capacity and a maximum 300 PSIG supply pressure, it is the standard choice for contractors managing high-volume mainlines or large pneumatic tools. The unit operates via a piston-style mechanism which offers increased durability compared to standard diaphragm models, ensuring consistent 10-125 PSIG adjustable pressure control. With two 1/4" NPT gauge ports, technicians can easily monitor downstream pressure or install supplemental sensing equipment. This self-relieving regulator automatically vents downstream overpressure, making it an essential component for system safety and precise pneumatic execution in professional HVACR and mechanical workshops.
Key Benefits:- High-Flow Performance: Delivers up to 500 SCFM, capable of supporting large-scale industrial air distribution systems without significant pressure drops.
- Durable Construction: The zinc die-cast body and piston-actuated design provide long-term reliability in harsh environments.
- Precise Pressure Control: Balanced valve minimizes the effect of inlet pressure variations on the regulated setpoint.
- Ease of Integration: Features standard 1" NPT female ports and dual gauge ports for flexible mounting and monitoring configurations.
What is the difference between a relieving and non-relieving regulator?
The R30-08-000 is a relieving model, meaning it allows trapped downstream air to escape when the pressure setting is reduced, preventing system lockup. Non-relieving models require downstream venting to adjust the setpoint lower.
Can this regulator handle moist or lubricated air?
While the nitrile seals are compatible with standard pneumatic oils, we recommend installing a filter upstream to prevent debris from fouling the balanced valve assembly and ensuring optimal flow performance.
Does this unit come with a pressure gauge?
This specific model includes two 1/4" ports for gauge installation, but the gauge itself is typically sold separately to allow technicians to choose the specific pressure range and face size required for their application.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
