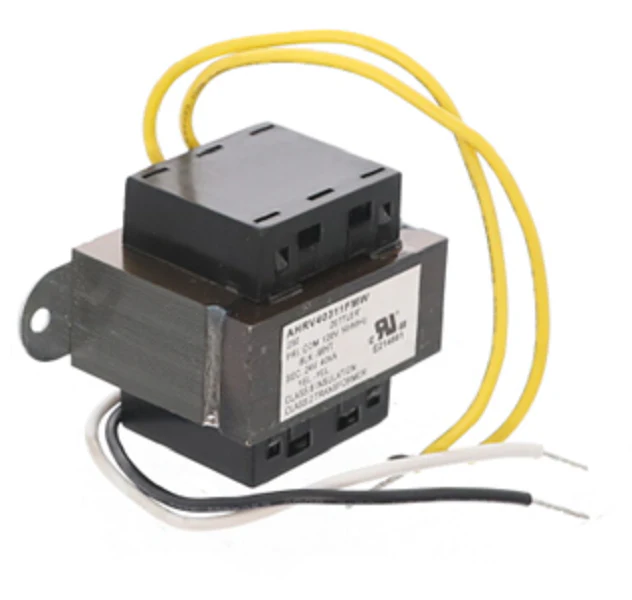

Wayne 64406-001 Transformer
The Wayne 64406-001 Transformer is a critical component for ensuring stable 24V control voltage in combustion systems. Designed with a 120V primary and a 24V secondary, this 40VA transformer provides the necessary power for thermostats, gas valves, and electronic ignition controls. For veteran technicians, this unit is a standard replacement in HVAC furnace and oil burner applications where a reliable Class 2 power source is required. The 40VA rating ensures sufficient overhead for modern digital controllers and multi-stage ignition systems without the risk of nuisance tripping or voltage drop under load.
Constructed for durability in demanding mechanical environments, the 64406-001 features a foot-mount design for secure installation within the burner housing or control cabinet. It is engineered to step down 120V AC line voltage effectively, maintaining consistent secondary output to protect sensitive 24V components. Whether you are performing a routine heating system tune-up or resolving an ignition failure, this HVAC 24 volt transformer delivers the precise magnetic induction required for seamless operation and long-term performance in the field.
Key Benefits:- Universal Compatibility: Ideal for Wayne oil burner assemblies and general HVAC control circuits requiring 40VA capacity.
- Contractor Grade: Built to withstand the high-temperature environments typical of combustion chambers and furnace vestibules.
- Class 2 Rated: Meets safety standards for energy-limiting performance, reducing the need for external secondary fusing in many applications.
- Easy Integration: Features standard lead wires for fast 120V/24V connections during emergency repair calls.
Can I use this to replace a transformer with a lower VA rating?
Yes, a 40VA transformer can safely replace units with lower ratings (e.g., 20VA or 30VA), provided the primary and secondary voltages match. The higher VA rating simply offers more available power for the control circuit.
What are the symptoms of a failing 40VA control transformer?
Common signs include a complete loss of 24V power to the thermostat, "chattering" relays, or the burner failing to initiate the ignition sequence despite having line voltage.
Is this transformer compatible with 208V or 240V systems?
No, the Wayne 64406-001 is specifically wound for a 120V primary. Using this on 208/240V lines will cause immediate failure and potential damage to the control board.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
