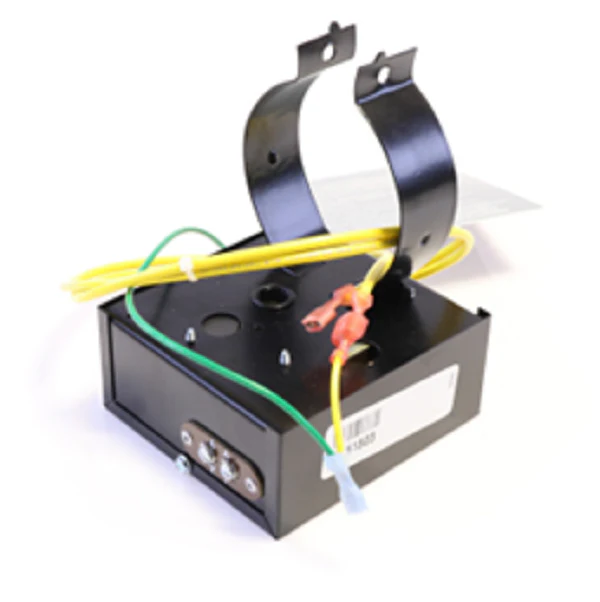

Wayne 61803 Control Box Assembly
The Wayne 61803 Control Box Assembly is a foundational component for managing multi-stage combustion equipment operations, providing high-precision regulation of fuel flow and ignition timing. Built to withstand the rigors of industrial settings, this assembly is engineered specifically for compatibility with Wayne Model P250AF burners and various power burner configurations found in boilers and industrial furnaces. It functions as the primary hub for your system's electrical logic, integrating advanced electronic components to maintain strict safety parameters while optimizing total fuel efficiency. Practitioners will appreciate the 115V AC input/output architecture and integrated overload protection that safeguards the burner control circuit against spikes and faults.
When replacing a legacy combustion control system, the Wayne 61803 offers a streamlined interface that simplifies field wiring and reduces diagnostic overhead. This unit is essential for technicians tasked with restoring HVAC burner performance in environments where downtime is not an option. Its robust, weather-resistant enclosure ensures that internal relays and logic boards remain protected from environmental contaminants. For professional contractors, installing this OEM Wayne replacement part ensures that the combustion sequence remains within factory-specified tolerances, preserving the operational integrity of the entire heating plant.
Key Benefits- Precision Control: Regulates exact fuel flow and ignition timing to enhance overall combustion performance.
- System Safety: Features integrated overload protection to prevent electrical faults from damaging the burner motor or ignitor.
- Wide Compatibility: Specifically designed for the Wayne P250AF and compatible with various 115V AC industrial burners.
- Contractor-Grade Durability: Housed in a heavy-duty enclosure designed to last in demanding mechanical rooms and industrial sites.
- Simplified Installation: Standardized terminal layout allows for faster field wiring and straightforward drop-in replacement.
What burner models is the Wayne 61803 compatible with?
This assembly is primarily designed for the Wayne P250AF model but supports several Wayne power burner configurations requiring a 115V AC control interface.
Does this unit include the flame sensor or ignitor?
No, this is the master control box assembly. External components like cad cells or ignitors must be purchased separately or reused from the original setup.
Can this be used in outdoor installations?
While the enclosure is robust and weather-resistant, it is best practice to house the assembly within the burner's protective shroud or an additional NEMA-rated enclosure if exposed to direct elements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
