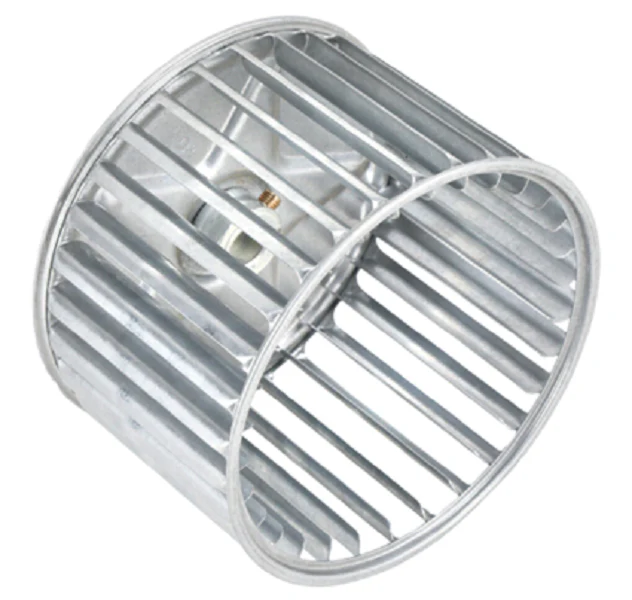

Wayne 20288 Wheel
The Wayne 20288 Blower Wheel is a precision-engineered oil burner fan designed for high-static pressure applications, specifically for Wayne E Series and Model FH burners. Measuring 3.44 inches wide by 5.25 inches in diameter with a 1/2 inch bore, this squirrel cage wheel is dynamically balanced to ensure vibration-free rotation at speeds up to 1800 RPM. This replacement component is essential for maintaining the correct fuel-to-air ratio in forced-draft oil burners, often found in industrial setups and high-pressure washing systems like Hotsy, Landa, and Karcher. Pro-grade construction includes a metal blower wheel design that resists thermal deformation during intensive combustion cycles. Technicians rely on the Wayne Combustion 20288 to restore airflow integrity, ensuring efficient atomization and preventing soot buildup common in poorly ventilated burners. This OEM replacement part (also referenced as 8.700-730.0) provides the exact fit required to secure into the burner housing without clearance issues or shaft slippage.
Key Benefits- Precision Balancing: High RPM stability reduces bearing wear on the burner motor and eliminates mechanical vibration.
- Optimized Combustion: Exact blade pitch and 5.25" diameter provide the necessary cubic feet per minute (CFM) for efficient diesel and oil firing.
- Industrial Durability: Robust construction holds up to the rigorous demands of 13 gph oil burners and high-pressure heating systems.
- Standardized Bore: The 1/2" shaft bore ensures a direct fit for standard Wayne combustion motor shafts.
Is this wheel compatible with Blue Angel burners?
Yes, this specific configuration is widely used across the E series, including legacy Blue Angel models that utilize the 5.25" x 3.44" fan specification.
What are the signs of a failing blower wheel?
Excessive rumbling, a sudden "whirring" noise at startup, or visual evidence of oily lint buildup on the blades are primary indicators that the wheel is out of balance or damaged.
How do I secure the wheel to the motor shaft?
You must align the flat portion of the motor shaft with the internal set screw of the 1/2" bore. Ensure the wheel is seated deep enough for housing clearance before torquing to prevent axial rubbing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $40.62
-65%$40.62
$14.22Wayne 20288 Wheel
The Wayne 20288 Blower Wheel is a precision-engineered oil burner fan designed for high-static pressure applications, specifically for Wayne E Series and Model FH burners. Measuring 3.44 inches wide by 5.25 inches in diameter with a 1/2 inch bore, this squirrel cage wheel is dynamically balanced to ensure vibration-free rotation at speeds up to 1800 RPM. This replacement component is essential for maintaining the correct fuel-to-air ratio in forced-draft oil burners, often found in industrial setups and high-pressure washing systems like Hotsy, Landa, and Karcher. Pro-grade construction includes a metal blower wheel design that resists thermal deformation during intensive combustion cycles. Technicians rely on the Wayne Combustion 20288 to restore airflow integrity, ensuring efficient atomization and preventing soot buildup common in poorly ventilated burners. This OEM replacement part (also referenced as 8.700-730.0) provides the exact fit required to secure into the burner housing without clearance issues or shaft slippage.
Key Benefits- Precision Balancing: High RPM stability reduces bearing wear on the burner motor and eliminates mechanical vibration.
- Optimized Combustion: Exact blade pitch and 5.25" diameter provide the necessary cubic feet per minute (CFM) for efficient diesel and oil firing.
- Industrial Durability: Robust construction holds up to the rigorous demands of 13 gph oil burners and high-pressure heating systems.
- Standardized Bore: The 1/2" shaft bore ensures a direct fit for standard Wayne combustion motor shafts.
Is this wheel compatible with Blue Angel burners?
Yes, this specific configuration is widely used across the E series, including legacy Blue Angel models that utilize the 5.25" x 3.44" fan specification.
What are the signs of a failing blower wheel?
Excessive rumbling, a sudden "whirring" noise at startup, or visual evidence of oily lint buildup on the blades are primary indicators that the wheel is out of balance or damaged.
How do I secure the wheel to the motor shaft?
You must align the flat portion of the motor shaft with the internal set screw of the 1/2" bore. Ensure the wheel is seated deep enough for housing clearance before torquing to prevent axial rubbing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
