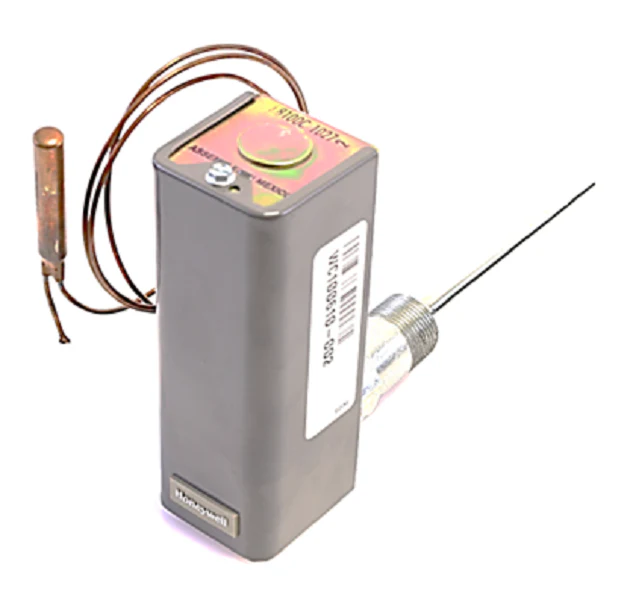

Wayne 100697-001 Aquastat
The Wayne 100697-001 Aquastat is a mission-critical immersion-type controller engineered for precise temperature regulation in hydronic boiler systems and storage tanks. Designed to provide reliable SPST switching, this component acts as a high-limit or circulator control to maintain optimal thermal cycles. As a specialized HVAC replacement part, it integrates seamlessly with Wayne combustion oil burners and water heating equipment, ensuring the system shuts down or activates based on the specific liquid temperature setpoints. This aquastat features a durable sensing bulb and capillary assembly designed for direct immersion or immersion well mounting, providing the rapid thermal response necessary for high-performance boiler temperature control.
Key Benefits:
- Universal SPST switching logic for flexible configuration as either a high-limit safety or a circulator activator.
- Engineered for Wayne Combustion OEM compatibility, ensuring a drop-in fit for existing burner assemblies.
- Robust copper-sensing bulb for superior thermal conductivity and accurate temperature sensing in hydronic systems.
- High-amp electrical rating suitable for direct control of burner circuits or circulator pumps without additional relays.
- Designed for veteran contractors requiring a heavy-duty aquastat that withstands high-ambient boiler room conditions.
Common Questions:
How do I set the differential on the Wayne 100697-001?
This model typically features a fixed or adjustable differential depending on the specific series iteration; most contractors use it to maintain a tight 5°F to 10°F window to prevent short-cycling of the Wayne oil burner.
Can this aquastat be mounted horizontally or vertically?
Yes, the Wayne 100697-001 is designed for versatile mounting orientations, provided the immersion well or sensing bulb is fully submerged in the medium being measured for accurate aquastat controller performance.
Is this part compatible with other burner brands?
While optimized for Wayne combustion parts, its standard electrical and physical specifications often allow for cross-application in systems requiring a standard immersion temperature limit switch, though verify mounting threads before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
