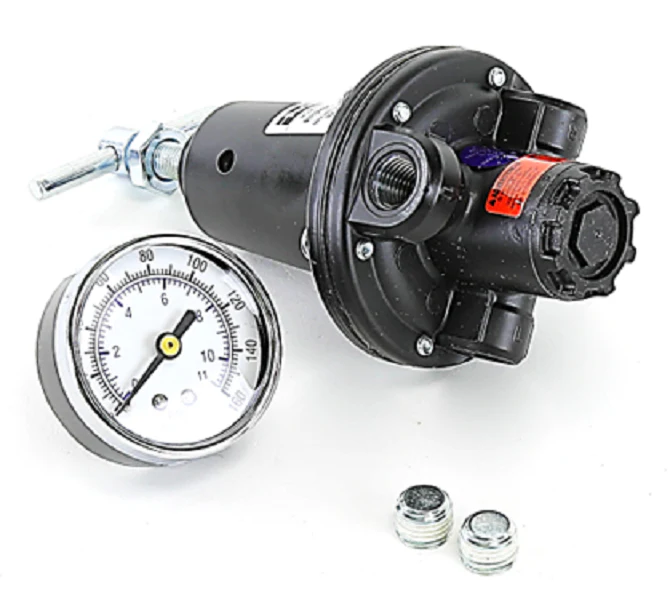

Watts R119-02CG Regulator
The Watts R119-02CG is a high-performance 1/4 inch NPT pressure regulator designed for rigorous HVACR and industrial pneumatic applications. Built with a rugged zinc body and an aluminum spring cage, this diaphragm-operated regulator ensures stable downstream pressure even amidst significant fluctuations in flow. It features a balanced poppet design to deliver rapid response times and consistent accuracy, crucial for maintaining system setpoints in air service environments. The unit includes a GC230 pressure gauge for real-time monitoring of the 0-125 PSI reduced pressure range.
For the field contractor, the heavy-duty T-handle adjustment provides precise control and a mechanical advantage when setting line pressures. This relieving type regulator is rated for a maximum inlet pressure of 300 PSIG and a high flow capacity of 100 SCFM, making it effective for pneumatic tool regulation and automated air-line systems. The choice of a brass bottom plug and Buna-N seals ensures reliable sealing and long-term durability in temperatures ranging from 40°F to 120°F.
Key Benefits- Consistent Output: Diaphragm design with secondary aspiration compensates for flow variations to prevent pressure creep.
- Field Serviceable: The zinc body and brass bottom plug construction allow for durable installation in demanding mechanical rooms.
- Installation Ready: Comes standard with a 0-125 PSI gauge and 1/4" NPT ports for immediate integration into existing air lines.
- High Flow Capacity: Delivers up to 100 SCFM, minimizing pressure drop during peak demand cycles.
What is the maximum supply pressure for this regulator?
The Watts R119-02CG is engineered to handle a maximum primary inlet pressure of 300 PSIG.
Is this unit suitable for water or steam service?
No, these pneumatic regulators are strictly designed for compressed air service only. Using them with other media can damage the Buna-N diaphragm or internal components.
How do I adjust the outlet pressure?
Pressure is controlled via the heavy-duty T-handle. Turn clockwise to increase the secondary pressure within the 0-125 PSI range and counter-clockwise to reduce it.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
