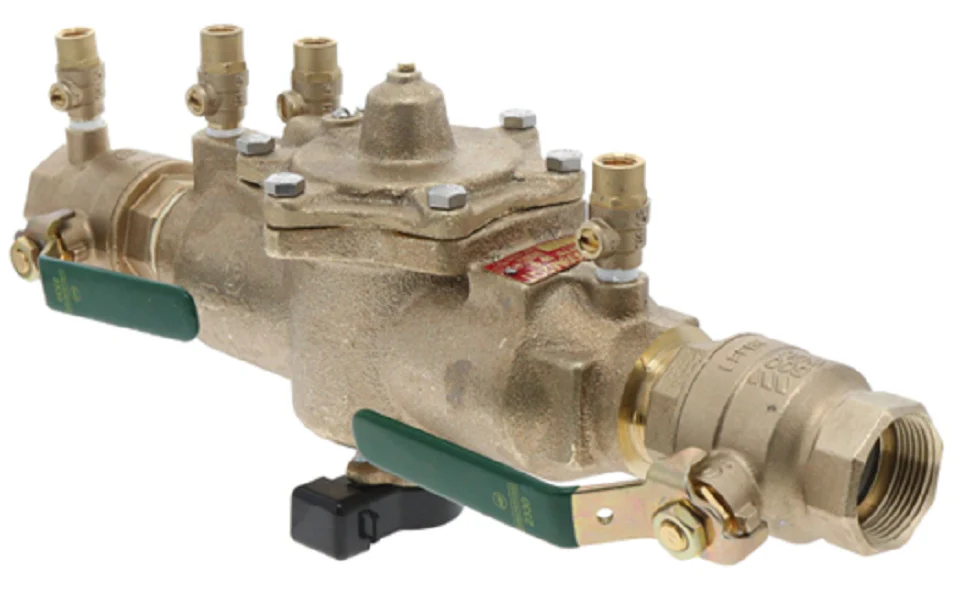

Watts 88004113 Assembly
The Watts 88004113, also known as the LF009M2-QT-FS 1-1/4, is a heavy-duty Reduced Pressure Zone Assembly engineered to safeguard potable water systems against backpressure and backsiphonage. This 1-1/4 inch unit features a lead-free copper silicon alloy body, specifically designed for high-hazard cross-connections and continuous pressure applications. Its modular internal construction includes two independent check valves and an integrated relief valve, which maintain a lower pressure zone between the checks for superior backflow prevention. The compact design and single access cover simplify in-line maintenance, while the quarter-turn ball valve shutoffs and screwdriver-slotted test cocks facilitate efficient field testing. This model is equipped with an integrated SentryPlus Alert flood sensor, which triggers notifications of relief valve discharge when paired with a compatible connection kit. Integrating this RPZ backflow preventer into your facility's Building Management System (BMS) ensures real-time oversight and protection against water damage in critical commercial or industrial plumbing environments.
- Lead-Free Copper Silicon Alloy: Ensures compliance with national drinking water standards and local plumbing codes while providing superior corrosion resistance.
- Modular Maintenance: Single access cover design allows for the service of check valves and the relief valve without removing the assembly from the line.
- SentryPlus Alert Technology: Pre-installed sensor detects excessive discharge from the relief valve to prevent localized flooding and equipment damage.
- Full Port Ball Valves: Resilient seated, quarter-turn shutoffs with lever handles offer low pressure drop and positive closure for testing.
- Wide Capacity Range: Rated for working pressures up to 175 PSI and operating temperatures between 33°F and 180°F.
Common Questions
How do I activate the flood sensor on the Watts LF009M2-QT-FS?
The integrated flood sensor is a passive component until it is connected to a SentryPlus Alert connection kit (sold separately). Once equipped with a BMS, Wi-Fi, or cellular activation module, the sensor communicates relief valve discharge data to your monitoring system.
Is this unit suitable for outdoor installations in cold climates?
While the assembly can be installed outdoors, it is not designed to resist freezing. For installations in regions where temperatures drop below 33°F, the unit must be placed in a heated or insulated enclosure to prevent component failure.
Can the check seats be replaced during maintenance?
Yes, the internal check valves features replaceable polymer seats. The modular design enables technicians to replace individual seats and discs quickly, reducing long-term service costs compared to full unit replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
