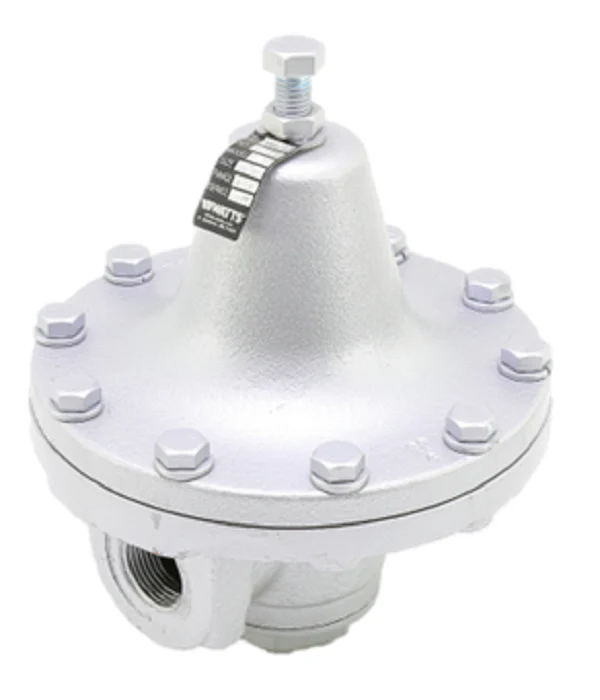

Watts 0830950 Regulator
The Watts 0830950 (Series 152A-1-142) is a heavy-duty, 1-inch steam pressure regulator designed for high-demand process applications including autoclaves, vulcanizers, and large-capacity sterilizers. Featuring a rugged iron body construction and NPT threaded female connections, this valve is engineered to handle an initial supply pressure up to 200 psi. The 30-140 psi adjustable range is controlled via a durable silicon-enriched laminated metal diaphragm and stainless steel trim, ensuring a highly sensitive response to downstream pressure changes. A critical feature for technicians is the integrated sensitivity adjuster, which allows for precise field tuning to eliminate chattering or vibration under critical flow conditions. Designed for maximum uptime, the 152A allows for in-line serviceability, enabling the replacement of seat and disc components without removing the valve from the piping. This process steam regulator maintains the fullest possible volume with a minimal pressure drop across the seat, providing consistent performance for industrial steam tables and oil lines.
Key Benefits- Sensitivity Adjuster: Exclusive feature allows technicians to eliminate line vibration and harmonic noise during high-velocity flow.
- In-Line Serviceability: Designed with a bottom plug and accessible bonnet for fast maintenance of the stainless steel strainer and disc assembly.
- High-Capacity Performance: Optimized internal geometry maintains maximum steam volume even during significant reduced pressure fluctuations.
- Durable Construction: Built with a cast iron body and stainless steel stem guide for long-term reliability in saturated steam environments.
- Universal Application: Suitable for steam, air, or non-corrosive liquid service in industrial process lines.
How do I stop the regulator from vibrating or chattering during operation?
The 152A features a sensitivity adjustment screw. Turn the compensator screw slowly with a screwdriver to "dial out" the vibration without affecting the pressure setting.
Can this regulator be used for dead-end steam service?
For dead-end or liquid service where bubble-tight shutoff is required, the 152AT model with a Teflon disc is typically preferred, though the standard 152A provides high-sensitivity regulation for continuous process loads.
Is an external strainer required for installation?
While the 152A includes an internal stainless steel strainer screen, installing an additional high-capacity Y-strainer upstream is recommended to protect the seat from pipe scale and debris common in older steam systems.
