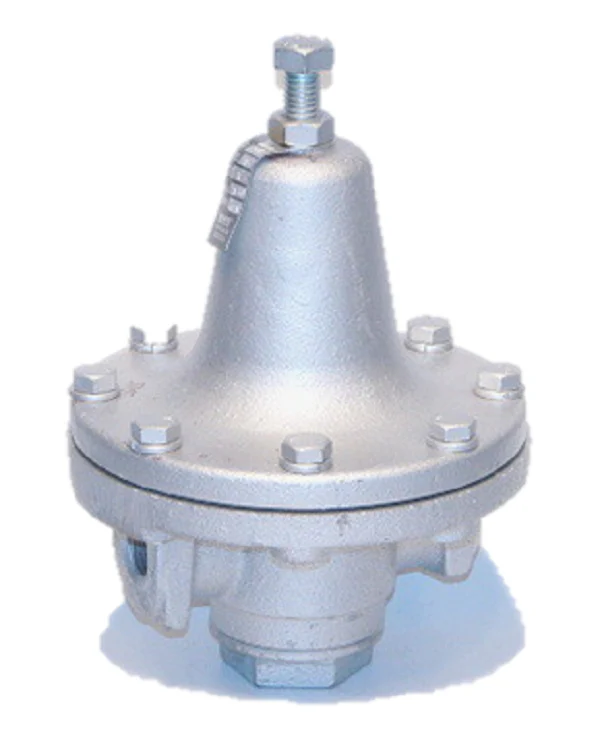

Watts 0830905 Regulator
The Watts 0830905 is a high-performance 1/2" NPT process steam pressure regulator from the 152A series, engineered for precise control in commercial and industrial steam systems. This iron body steam regulator is built to handle an initial supply pressure up to 200 psi, delivering a reduced output range of 30 to 140 psi. Designed for high sensitivity to downstream pressure changes, the 152A maintains maximum flow capacity with minimal pressure drop, making it an essential component for steam pressure reducing valve applications involving autoclaves, sterilizers, and process lines. The internal stainless steel strainer and disc provide excellent resistance to scaling and erosion, while the integrated sensitivity adjuster allows technicians to tune out system vibrations and "chattering" often found in critical flow environments. With its NPT threaded female connections and serviceable in-line design, this Watts 152A steam regulator ensures straightforward integration and long-term reliability for contractors managing steam tables, vulcanizers, or oil line heating systems.
Key Benefits- High Sensitivity Control: Rapidly responds to minor pressure fluctuations to ensure stable downstream performance for sensitive process equipment.
- In-Line Serviceability: Designed for easy maintenance; the disc and seat can be inspected or replaced without removing the valve body from the piping.
- Reduced Chattering: Features a standard sensitivity adjustment screw to eliminate vibration noises during critical flow conditions.
- Robust Internals: Equipped with a stainless steel strainer screen and disc to protect the valve seat from pipeline debris and steam-borne particulates.
- Broad Application Range: Versatile enough for saturated wet or superheated steam services across institutional and industrial facilities.
What is the maximum inlet pressure and temperature for this regulator?
The 152A series is rated for a maximum initial supply pressure of 200 psi (13.8 bar) and can handle operating temperatures up to 300°F.
Can this valve be used for dead-end service?
The standard 152A is designed for continuous flow. For dead-end or liquid services where tight shut-off is required, the 152A-T model is typically recommended.
How do I stop the valve from vibrating or making noise?
Use the sensitivity adjuster screw located on the unit. Turning the screw slowly clockwise or counter-clockwise allows you to "dial out" harmonics caused by specific flow requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,363.15
-65%$1,363.15
$477.10Watts 0830905 Regulator
The Watts 0830905 is a high-performance 1/2" NPT process steam pressure regulator from the 152A series, engineered for precise control in commercial and industrial steam systems. This iron body steam regulator is built to handle an initial supply pressure up to 200 psi, delivering a reduced output range of 30 to 140 psi. Designed for high sensitivity to downstream pressure changes, the 152A maintains maximum flow capacity with minimal pressure drop, making it an essential component for steam pressure reducing valve applications involving autoclaves, sterilizers, and process lines. The internal stainless steel strainer and disc provide excellent resistance to scaling and erosion, while the integrated sensitivity adjuster allows technicians to tune out system vibrations and "chattering" often found in critical flow environments. With its NPT threaded female connections and serviceable in-line design, this Watts 152A steam regulator ensures straightforward integration and long-term reliability for contractors managing steam tables, vulcanizers, or oil line heating systems.
Key Benefits- High Sensitivity Control: Rapidly responds to minor pressure fluctuations to ensure stable downstream performance for sensitive process equipment.
- In-Line Serviceability: Designed for easy maintenance; the disc and seat can be inspected or replaced without removing the valve body from the piping.
- Reduced Chattering: Features a standard sensitivity adjustment screw to eliminate vibration noises during critical flow conditions.
- Robust Internals: Equipped with a stainless steel strainer screen and disc to protect the valve seat from pipeline debris and steam-borne particulates.
- Broad Application Range: Versatile enough for saturated wet or superheated steam services across institutional and industrial facilities.
What is the maximum inlet pressure and temperature for this regulator?
The 152A series is rated for a maximum initial supply pressure of 200 psi (13.8 bar) and can handle operating temperatures up to 300°F.
Can this valve be used for dead-end service?
The standard 152A is designed for continuous flow. For dead-end or liquid services where tight shut-off is required, the 152A-T model is typically recommended.
How do I stop the valve from vibrating or making noise?
Use the sensitivity adjuster screw located on the unit. Turning the screw slowly clockwise or counter-clockwise allows you to "dial out" harmonics caused by specific flow requirements.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
