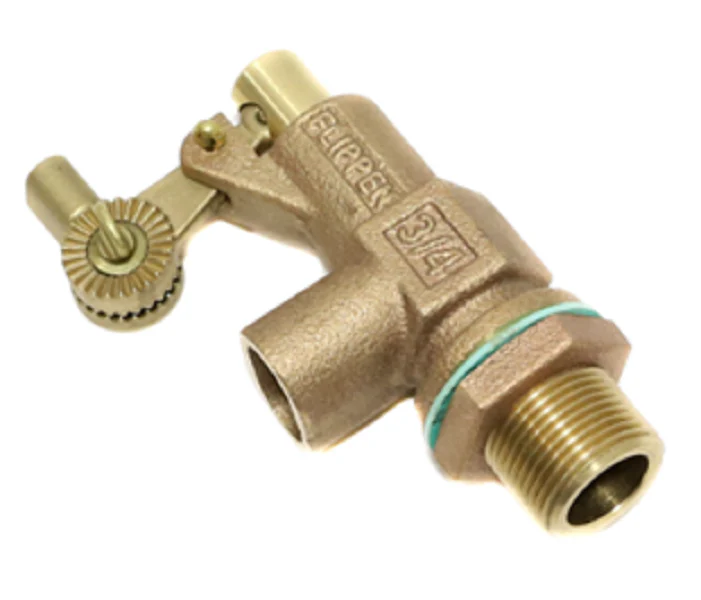

Watts 0780008 Valve
The Watts 0780008 (Series 750-12) is a 3/4 inch heavy duty float valve engineered for critical water level control in high-demand commercial and industrial HVACR environments. This bronze mechanical float valve features a robust 3/4" MNPT outlet and a machined flange on the inlet side, specifically designed for stable bulkhead tank wall mounting. Primarily used in cooling towers, evaporative condensers, and large-scale refrigeration systems, this unit provides a reliable high capacity water flow ranging from 40 GPM at 50 PSI up to 60 GPM at 100 PSI. The assembly includes serrated arms made of high-tensile manganese bronze, allowing for precise water level calibration without the risk of slippage. Its no-jam single lever action and replaceable Buna-N seals ensure consistent performance under a maximum working pressure of 165 PSI and temperatures up to 180°F.
Key Benefits- Heavy Duty Construction: All-bronze body and manganese bronze arms resist corrosion in harsh cooling tower applications.
- High Flow Performance: Rated for up to 60 GPM, making it ideal for rapid tank replenishment in industrial systems.
- Precision Adjustment: Serrated arm design enables secure, incremental positioning of the float to maintain exact liquid levels.
- Serviceability: Designed with replaceable plunger disks and seals to extend the service life of the valve body.
- Secure Mounting: Features a machined flange and includes a locknut and gasket for leak-proof mounting against tank walls.
What size float ball is required for the 750-12?
Standard installations typically utilize a 6-inch or 8-inch copper or plastic float ball with 1/4-20 threading to match the high-tensile bronze stem.
Can this valve be used for high-temperature applications?
Yes, the Watts 750-12 is rated for a maximum operating temperature of 180°F, making it suitable for hot water feed systems and high-temp industrial wash tanks.
Is the inlet connection internal or external?
The Watts 0780008 has a 1/2" female NPT pipe threaded inlet connection inside a larger male straight-pipe threaded section for the bulkhead locknut.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
