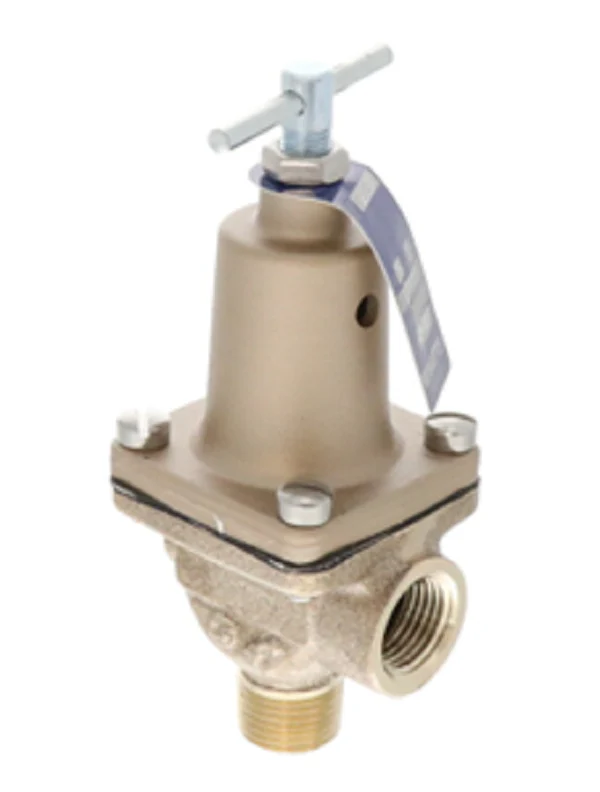

Watts 0121400 Valve
The Watts 0121400 (Series LFBP30) is a contractor-grade bypass control relief valve designed specifically for regulating liquid pressure in closed hydronic systems and applications utilizing positive pressure pumps. Engineered with a lead-free copper silicon alloy body, this diaphragm-operated valve features a 1/2-inch MNPT inlet and a 1/2-inch FNPT outlet, ensuring a secure fit in standard HVACR piping configurations. The internal assembly includes a sensitive rubber diaphragm and a durable Buna-N disc, protecting your equipment by accurately opening at an adjustable pressure range of 45 to 100 PSI.
For technicians in the field, the Watts BP30B offers ease of service with an integrated tee handle that allows for rapid manual pressure adjustments without specialized tools. The spring-loaded mechanism and adjustment handle are isolated from the liquid stream, preventing scale buildup and corrosion on critical moving parts. With a maximum temperature rating of 180°F and high-performance sealing technology, this 1/2" relief valve provides a reliable solution for bypassing excess volume back to the source, maintaining system steady-state and preventing pump-induced over-pressurization.
Key Benefits for the Contractor:- Lead-Free Construction: Complies with low-lead requirements associated with potable water and commercial pump systems.
- T-Handle Adjustment: Facilitates easy on-site calibration across the 45-100 PSI range to match specific system requirements.
- Durability: Rugged bronze-style alloy body and heavy-duty diaphragm extend service life in high-cycle hydronic environments.
- Internal Isolation: The spring chamber is separated from the media, reducing the risk of spring fatigue or fouling.
What is the difference between a standard relief valve and this bypass valve?
Standard safety relief valves are designed for emergency discharge. The Watts LFBP30 is a control valve that actively regulates pressure by bypassing fluid back to a tank or the pump suction side during normal operation.
Can this be used in high-temperature boiler loops?
This valve is rated for a maximum temperature of 180°F. If your secondary loop or bypass line exceeds this temperature, you must select a high-temp rated relief valve to ensure diaphragm integrity.
Is this valve compatible with reverse osmosis (RO) or chemical systems?
While the Watts 0121400 features a Buna-N disc and copper silicon alloy body, always verify chemical compatibility based on the specific fluid media before installation in industrial chemical or specialty RO loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
