Watts 0063232 Valve

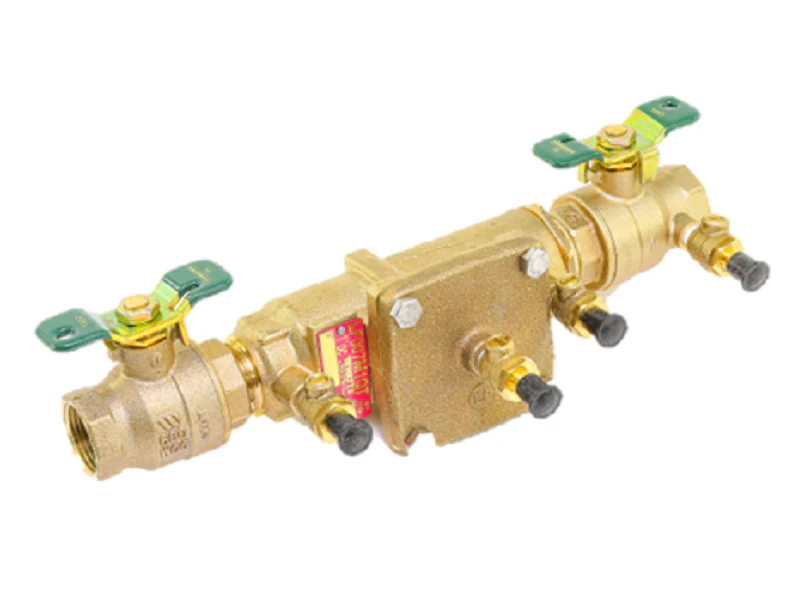

The Watts 0063232 (Series 007) is a 1-inch double check valve assembly engineered to prevent the backflow of contaminated water into the potable water supply under non-health hazard conditions. Designed for low-pressure drop and high flow rates, this bronze backflow preventer features two independent check valves in a compact, inline configuration. It serves as the direct replacement for legacy models 0062306, 007M1QT-1, and LF007M1-QT-1, facilitating a seamless retrofit in existing irrigation systems or fire protection lines. The unit includes two top-mounted test cocks and replaceable seats, allowing for straightforward field maintenance and backflow testing. Built with a durable bronze body and Noryl internals, it withstands back-siphonage and backpressure up to 175 psi at 180°F. For contractors, the 0063232 ensures compliance with plumbing codes while providing a reliable cross-connection control solution for residential and commercial mechanical rooms.
Key Benefits
- Modular Check Construction: Simplifies maintenance by allowing internal components to be serviced without removing the valve body from the line.
- Low Pressure Drop: Optimized internal geometry ensures minimal head loss, maintaining consistent system pressure during high-demand cycles.
- Top-Mounted Test Cocks: Provides easy access for technicians to perform annual certification and diagnostic pressure testing.
- Versatile Installation: Approved for horizontal, vertical, and upright mounting, making it adaptable to tight mechanical piping configurations.
- Corrosion Resistance: The high-grade bronze housing and stainless steel hardware prevent premature failure in harsh water environments.
Common Questions
Is the Watts 0063232 a direct replacement for the 007M1QT-1?
Yes, the 0063232 is the updated technical designation for several legacy models, including the 007M1QT-1 and the lead-free LF007M1-QT-1, maintaining the same center-to-center dimensions for easy installation.
What is the maximum operating temperature and pressure for this valve?
This double check assembly is rated for a maximum working pressure of 175 psi (12.1 bar) and can handle fluid temperatures ranging from 33°F to 180°F (0.5°C to 82°C).
Can this backflow preventer be used in high-hazard applications?
No, double check valve assemblies are specifically designed for non-health hazard applications. For protection against toxic substances or high-hazard chemicals, a reduced pressure zone (RPZ) assembly is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $403.77
-65%$403.77
$141.32Watts 0063232 Valve
The Watts 0063232 (Series 007) is a 1-inch double check valve assembly engineered to prevent the backflow of contaminated water into the potable water supply under non-health hazard conditions. Designed for low-pressure drop and high flow rates, this bronze backflow preventer features two independent check valves in a compact, inline configuration. It serves as the direct replacement for legacy models 0062306, 007M1QT-1, and LF007M1-QT-1, facilitating a seamless retrofit in existing irrigation systems or fire protection lines. The unit includes two top-mounted test cocks and replaceable seats, allowing for straightforward field maintenance and backflow testing. Built with a durable bronze body and Noryl internals, it withstands back-siphonage and backpressure up to 175 psi at 180°F. For contractors, the 0063232 ensures compliance with plumbing codes while providing a reliable cross-connection control solution for residential and commercial mechanical rooms.
Key Benefits
- Modular Check Construction: Simplifies maintenance by allowing internal components to be serviced without removing the valve body from the line.
- Low Pressure Drop: Optimized internal geometry ensures minimal head loss, maintaining consistent system pressure during high-demand cycles.
- Top-Mounted Test Cocks: Provides easy access for technicians to perform annual certification and diagnostic pressure testing.
- Versatile Installation: Approved for horizontal, vertical, and upright mounting, making it adaptable to tight mechanical piping configurations.
- Corrosion Resistance: The high-grade bronze housing and stainless steel hardware prevent premature failure in harsh water environments.
Common Questions
Is the Watts 0063232 a direct replacement for the 007M1QT-1?
Yes, the 0063232 is the updated technical designation for several legacy models, including the 007M1QT-1 and the lead-free LF007M1-QT-1, maintaining the same center-to-center dimensions for easy installation.
What is the maximum operating temperature and pressure for this valve?
This double check assembly is rated for a maximum working pressure of 175 psi (12.1 bar) and can handle fluid temperatures ranging from 33°F to 180°F (0.5°C to 82°C).
Can this backflow preventer be used in high-hazard applications?
No, double check valve assemblies are specifically designed for non-health hazard applications. For protection against toxic substances or high-hazard chemicals, a reduced pressure zone (RPZ) assembly is required.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
