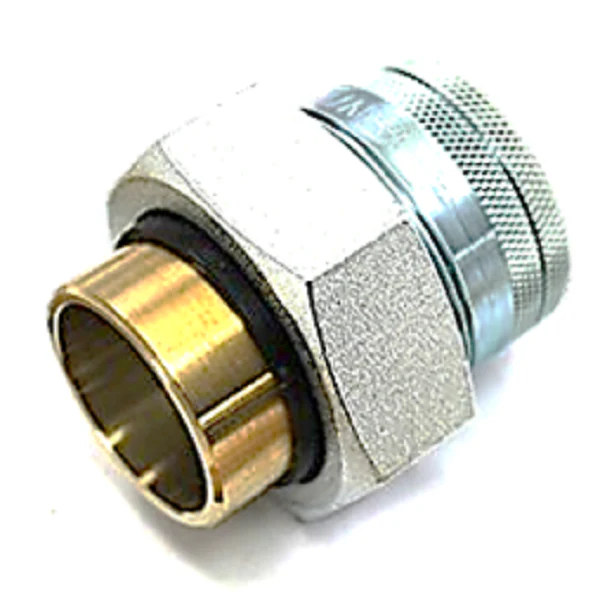

Watts 0009866 Union
The Watts 0009866 (Series LF3001A) is a critical 1-inch dielectric union engineered for commercial and residential hydronic and plumbing systems where dissimilar metals meet. Designed with a 1" FPT x 1" Sweat (female iron pipe thread to solder) configuration, this lead-free fitting effectively breaks the electrical path between copper and galvanized steel or iron piping. By utilizing a high-integrity polysulfone insulator and a durable Buna-N gasket, the LF3001A prevents galvanic corrosion and protects your equipment from the damaging effects of stray current electrolysis. This union is rated for a maximum pressure of 250 psi and operating temperatures up to 180°F, making it a standard choice for hot water storage tanks, processing tanks, and HVAC water lines. Each unit is factory-certified to withstand 600V on a dry line, ensuring long-term reliability in high-demand mechanical rooms. When your project requires a transition that meets lead-free plumbing standards, the 0009866 provides the necessary isolation to maintain system integrity and prevent premature pipe failure.
Key Benefits- Prevents Galvanic Corrosion: Stops the electrochemical reaction that occurs when joining copper to iron or steel piping.
- High-Voltage Isolation: Factory-tested to 600V dry-line performance to ensure a complete dielectric break.
- Lead-Free Construction: Complies with strict potable water regulations while maintaining industrial-grade durability.
- Pressure & Temperature Rated: Reliable performance up to 250 psi and 180°F for versatile application across hydronic and potable systems.
- Field-Proven Reliability: Features a robust steel nut and adapter paired with a lead-free brass tailpiece for secure, leak-free installations.
When should I use a dielectric union vs. a dielectric nipple?
Unions like the Watts LF3001A are preferred when the equipment—such as a water heater or heat exchanger—requires regular service or future replacement. The union allows for easy disconnection without cutting pipe, whereas nipples provide isolation but require more labor to disassemble.
Can these be used for steam or high-temperature lines?
The standard Watts 0009866 with the Buna-N gasket is rated for 180°F. For secondary loop steam or high-temp applications exceeding this, you must swap to a high-temp gasket (like EPDM) and check the corresponding pressure de-ratings.
How do I prevent the insulator from melting during installation?
Always solder the sweat tailpiece before final assembly. If you must solder near the union, remove the internal polysulfone insulator and gasket to avoid heat damage, then reassemble once the metal has cooled to the touch.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
