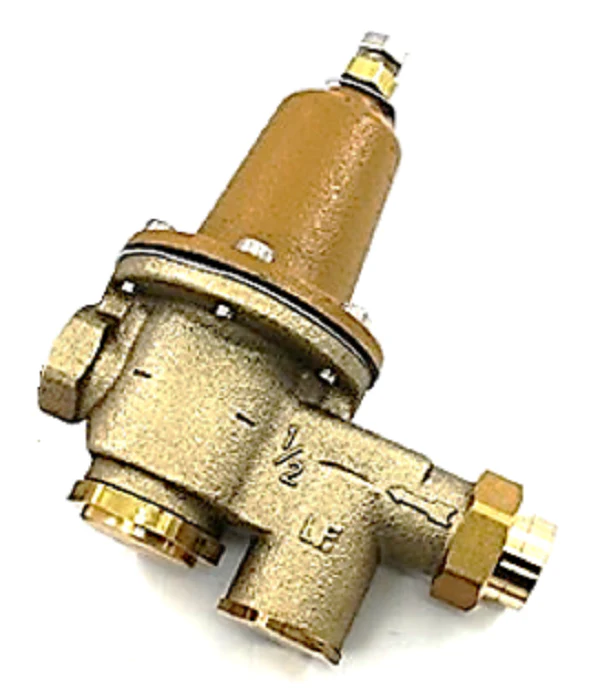

Watts 0009108 Regulator
The Watts 0009108, model LFU5B-Z3, is a high-performance lead-free water pressure reducing valve designed for commercial and residential applications requiring precise down-stream regulation. Featuring a 1/2 inch NPT threaded connection, this regulator is specifically calibrated for low-pressure requirements with a 10-35 psi adjustment range, factory set at 15 psi. Its integral strainer and bypass feature protect downstream components from debris and thermal expansion, making it a critical component for potable water systems. The low lead brass body construction ensures compliance with NSF/ANSI 61 standards, while the sealed spring cage allows for installation in varied environments, including pit or vault applications. This water pressure regulator is engineered for high-flow capacity with minimal fall-off, ensuring stable system pressure even during peak demand cycles.
Key Benefits:
- Lead-Free Construction: Meets all federal and state mandates for potable water safety and lead-free compliance.
- Low Pressure Calibration: Specifically designed for low-pressure applications with a precise 10-35 psi range.
- Serviceability: Features a replaceable stainless steel seat and reinforced diaphragm for long-term field reliability.
- System Protection: The integral stainless steel strainer prevents particulate matter from fouling the valve seat or downstream fixtures.
- Versatile Installation: The LFU5B-Z3 series supports vertical or horizontal orientations to fit tight mechanical room footprints.
Common Questions:
Can the outlet pressure be adjusted on the Watts LFU5B-Z3?
Yes, the adjustable pressure range for this specific model is 10 to 35 psi. Adjustments are made by loosening the lock nut and turning the adjustment bolt on the spring cage.
Is this regulator suitable for hot water lines?
This Watts water regulator is rated for temperatures up to 160°F (71°C), making it suitable for standard hot water supply lines in most multi-family and commercial builds.
Why is my regulator making a humming noise during flow?
Humming or vibration usually indicates high-velocity flow or a significant pressure differential. Ensure the 1/2 inch size is correctly matched to your Gallons Per Minute (GPM) requirements and that the bypass feature is not obstructed.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
