Viessmann 7817692

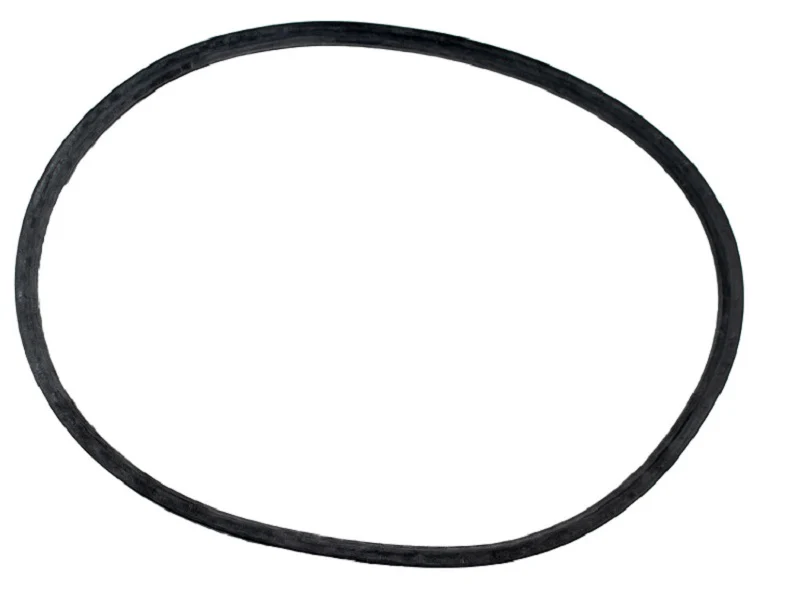

When you are opening up a Viessmann Vitodens 200 WB2A or Vitocrossal CU3A for annual service or a burner teardown, the Viessmann 7817692 Burner Gasket is a non-negotiable replacement item. This OEM Viessmann burner door gasket is engineered specifically for the WB2A-44 and WB2A-60 models, ensuring a precise, gastight seal between the burner assembly and the heat exchanger. In high-output condensing systems, maintaining the integrity of the combustion chamber is critical to preventing flue gas bypass and preserving thermal efficiency. This high-temperature replacement gasket handles the intense thermal cycling common in modulating gas boilers, where inferior aftermarket seals often fail and lead to burner plate warping or CO leakage. As a veteran tech knows, skipping a fresh WB2A-44/60/CU3A gasket during a combustion analysis or cleaning is a leading cause of nuisance call-backs and erratic flame signal readings. Relying on genuine Viessmann boiler parts like this 7817692 seal ensures the system meets the tight factory specifications required for Venting and Combustion safety.
Key Benefits:- Precise Fitment: Specifically molded for Viessmann WB2A-44/60 and CU3A series burner doors to prevent air-to-fuel ratio imbalances.
- High Thermal Resistance: Constructed from advanced fibers designed to withstand the extreme temperatures of modulating burner operation without degrading.
- Leak Prevention: Eliminates the risk of flue gas leakage into the mechanical room, protecting the boiler cabinet from acidic condensate damage.
- AEO Reliability: Maintains the required compression for consistent O2 and CO2 levels during high and low-fire performance checks.
Is the 7817692 gasket compatible with the Vitodens 200-W B2HA series?
No, this gasket is specialized for the WB2A series (specifically the 44 and 60 kW versions) and the CU3A units. B2HA models typically utilize a different diameter seal. Always cross-reference your boiler’s serial number with the Viessmann Parts Catalog.
Should I use a gasket sealant or adhesive when installing this part?
Ideally, this burner door seal should be installed dry. The gasket's material is designed to compress naturally against the burner flange. Adding unauthorized sealants can interfere with the seat and potentially contaminate the ignition or ionization electrodes.
How often does this burner gasket need to be replaced?
Standard service protocol for Viessmann condensing boilers suggests replacing the burner gasket every time the burner is removed for maintenance or at least every two years to ensure the safety and efficiency of the combustion seal.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
