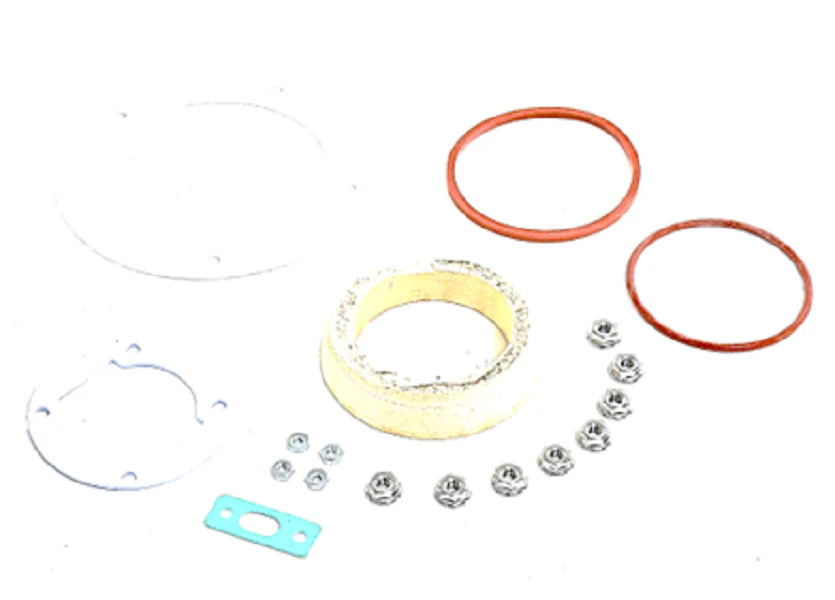

Utica-Dunkirk 550002280 Inspection Kit
The Utica-Dunkirk 550002280 Burner Inspection Kit is a critical OEM boiler replacement part designed for high-efficiency condensing gas boilers. This technical service kit is engineered specifically for the Dunkirk Helix VLT and VX Series, as well as the Utica SSC Boiler Series. When performing annual maintenance or diagnosing combustion issues, using genuine Utica-Dunkirk parts ensures that the burner door and refractory components maintain a precise seal and thermal integrity. This complete boiler maintenance kit includes 1/4-20 and 8-32 hex nuts, a refractory burner sleeve, an igniter gasket, and high-temperature fiber gaskets to restore the air/fuel inlet seal. Technicians should utilize this kit to prevent carbon buildup and ensure optimal combustion efficiency during inspection routines. The precision-fit O-rings and sealing components facilitate a reliable 100/150/200 MBH burner assembly reseal, reducing the risk of exhaust gas leakage or ignition failure. Relying on this heavy-duty inspection kit streamlines the service process for residential and commercial hydronic heating systems.
Key Benefits- System Compatibility: Explicitly designed for Dunkirk Helix VLT, Helix VX, and Utica SSC boiler series for a guaranteed factory fit.
- Complete Hardware Set: Includes all necessary 8-32 hex nuts and 1/4-20 nuts required to secure the burner door and internal refractory sleeve.
- Refractory Protection: Features a new refractory burner sleeve to maintain thermal insulation and protect the burner housing from high-heat degradation.
- Leak Prevention: High-grade fiber gaskets and igniter gaskets prevent air/fuel bypass and ensure safe exhaust venting.
- Optimized Performance: Facilitates thorough internal inspections to identify carbon buildup or component wear early, extending the lifecycle of the heat exchanger.
Is this kit compatible with all MBH sizes?
Yes, the 550002280 kit is the standard inspection kit for 50, 75, 100, 150, and 200 MBH models within the VLT, VX, and SSC series. For 299 MBH models, please verify the specific larger-format kit required.
What is included in the Gasket set?
The kit provides a comprehensive sealing solution including the Air/Fuel Inlet Gasket, Fiber Gasket, and Igniter Gasket, along with two silicone O-rings for a complete airtight reseal.
Can I reuse the existing hardware?
While old hardware may appear intact, it is standard trade practice to replace the nuts and gaskets during an inspection to prevent seizing or leaks due to thermal cycling and compression set of original materials.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $47.94
-65%$47.94
$16.78Utica-Dunkirk 550002280 Inspection Kit
The Utica-Dunkirk 550002280 Burner Inspection Kit is a critical OEM boiler replacement part designed for high-efficiency condensing gas boilers. This technical service kit is engineered specifically for the Dunkirk Helix VLT and VX Series, as well as the Utica SSC Boiler Series. When performing annual maintenance or diagnosing combustion issues, using genuine Utica-Dunkirk parts ensures that the burner door and refractory components maintain a precise seal and thermal integrity. This complete boiler maintenance kit includes 1/4-20 and 8-32 hex nuts, a refractory burner sleeve, an igniter gasket, and high-temperature fiber gaskets to restore the air/fuel inlet seal. Technicians should utilize this kit to prevent carbon buildup and ensure optimal combustion efficiency during inspection routines. The precision-fit O-rings and sealing components facilitate a reliable 100/150/200 MBH burner assembly reseal, reducing the risk of exhaust gas leakage or ignition failure. Relying on this heavy-duty inspection kit streamlines the service process for residential and commercial hydronic heating systems.
Key Benefits- System Compatibility: Explicitly designed for Dunkirk Helix VLT, Helix VX, and Utica SSC boiler series for a guaranteed factory fit.
- Complete Hardware Set: Includes all necessary 8-32 hex nuts and 1/4-20 nuts required to secure the burner door and internal refractory sleeve.
- Refractory Protection: Features a new refractory burner sleeve to maintain thermal insulation and protect the burner housing from high-heat degradation.
- Leak Prevention: High-grade fiber gaskets and igniter gaskets prevent air/fuel bypass and ensure safe exhaust venting.
- Optimized Performance: Facilitates thorough internal inspections to identify carbon buildup or component wear early, extending the lifecycle of the heat exchanger.
Is this kit compatible with all MBH sizes?
Yes, the 550002280 kit is the standard inspection kit for 50, 75, 100, 150, and 200 MBH models within the VLT, VX, and SSC series. For 299 MBH models, please verify the specific larger-format kit required.
What is included in the Gasket set?
The kit provides a comprehensive sealing solution including the Air/Fuel Inlet Gasket, Fiber Gasket, and Igniter Gasket, along with two silicone O-rings for a complete airtight reseal.
Can I reuse the existing hardware?
While old hardware may appear intact, it is standard trade practice to replace the nuts and gaskets during an inspection to prevent seizing or leaks due to thermal cycling and compression set of original materials.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
