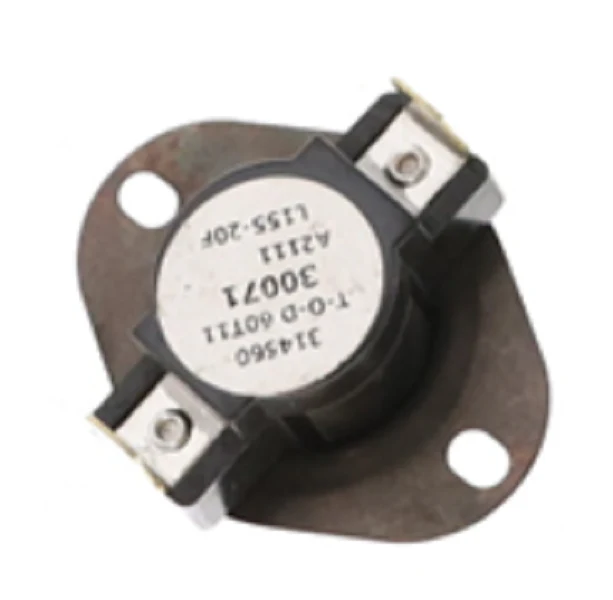

Utica-Dunkirk 30071 Limit Switch
The Utica-Dunkirk 30071 Limit Switch is a critical safety component designed for high-performance HVAC systems and industrial boiler applications. Engineered as an L155-20F limit switch, this SPDT high-limit control features a single pole double throw configuration, ensuring precise electrical circuit management for burner and blower motor synchronization. With an electrical rating of 15 Amps at 120-600VAC, it provides a robust solution for monitoring heat exchanger temperatures. The factory-preset 155°F cut-out and 20°F differential ensure system shutdown if temperatures exceed safety thresholds, preventing thermal stress on critical internal components. Built for long-term reliability in demanding environments, this HVAC high-limit safety switch is the standard OEM replacement part for many Utica and Dunkirk boiler models. Correct installation of this 30071 boiler limit switch is essential for maintaining proper HVAC safety control and preventing system short-cycling or blower fan malfunctions caused by thermal overload.
Key Benefits for Technicians:- Universal Voltage Compatibility: Rated for 120V to 600VAC operation, accommodating a wide range of commercial and residential heating equipment.
- Precise Thermal Response: The L155-20F fixed setting provides a reliable 155°F limit with a 20°F reset differential for stable operation.
- Heavy-Duty SPDT Contacts: Features a 15A current rating to handle the inductive loads of high-output boiler burners and blowers.
- OEM Fit and Reliability: Direct Utica-Dunkirk 30071 replacement ensures exact mounting and terminal alignment for faster field service.
- How do I test the Utica 30071 limit switch for continuity? Using a multimeter set to ohms, verify continuity between the common and normally closed terminals at room temperature. If the circuit remains open while cool, the switch has likely failed.
- What causes an L155-20F switch to trip frequently? Restricted airflow from clogged filters or a failing blower motor often leads to localized overheating, triggering the high-limit safety to protect the heat exchanger.
- Can this part replace a different temperature limit? No. It is vital to use the specific L155-20F calibration to ensure your system shuts down and resets at the manufacturer's specified safety parameters.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
