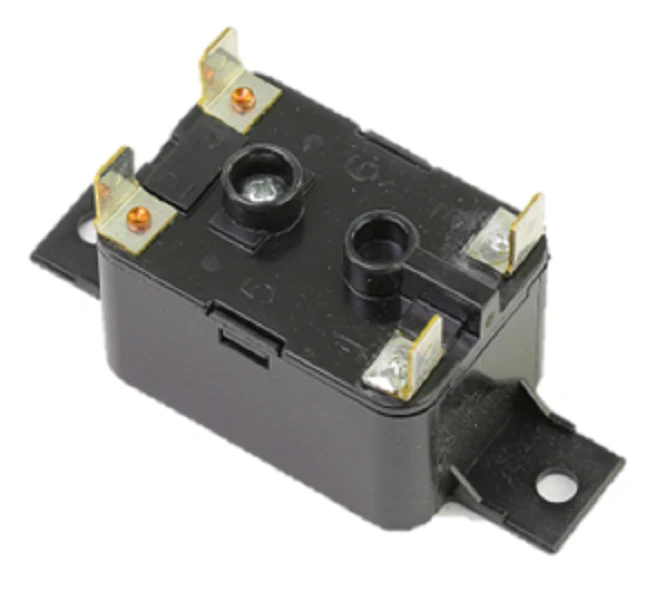

Utica-Dunkirk 27739 Relay
The Utica-Dunkirk 27739 Relay is a heavy-duty, single-pole single-throw (SPST) switching component engineered for precision control in residential and commercial boiler systems. Designed as a direct replacement part for ECR International equipment, including various DXL Series II cast iron gas-fired boilers, this SPST switching relay ensures high-reliability interfacing between low-voltage thermostats and line-voltage components like circulator pumps or inducer motors. Its compact, rugged construction is built to withstand the thermal cycling and high-demand environments typical of hydronic heating systems.
When diagnosing ignition or circulation failures, this OEM HVAC relay provides a simplified normally open (NO) contact configuration that eliminates complex wiring common in multi-pole units. With a standard 24V coil voltage (typical for Utica/Dunkirk control loops), the 27739 is vital for maintaining proper sequencing and preventing "contact plate stuck" issues that lead to intermittent system lockouts. Installing this Utica-Dunkirk boiler part ensures the control board can effectively manage electrical loads without premature degradation of the switching surface, maintaining optimal system efficiency and safety during peak heating loads.
Key Benefits
- Direct OEM Compatibility: Specifically designed for Utica and Dunkirk boiler models to ensure seamless integration with existing control logic and wiring harnesses.
- Enhanced Durability: Features high-grade contact materials that resist pitting and welding under inductive motor loads.
- Simplified SPST Configuration: Streamlines troubleshooting and installation by utilizing a standard single-circuit switching path.
- Compact Footprint: Allows for easy mounting inside crowded junction boxes or primary control enclosures.
- Reliable Sequencing: Provides consistent response times to thermostat "call for heat" signals, ensuring circulators and burners activate in the correct order.
Common Questions
How do I test if my 27739 relay is defective?
Use a multimeter to check for 24VAC across the coil terminals when the thermostat is calling for heat. If voltage is present but the contacts do not close (or there is no continuity across the switched terminals), the relay is likely faulty. You can also listen for a distinct "click" which indicates the armature is moving, though this does not always guarantee low contact resistance.
Can this relay control a higher-voltage circulator pump?
Yes, as an SPST relay, it is typically used to bridge the 24V control circuit to a 120V load, such as a system circulator. Always verify the amperage draw of your pump does not exceed the contact rating of the relay to prevent overheating.
What are the signs of a failing switching relay?
Common symptoms include the boiler firing but the water pump failing to start, or the pump running constantly even when there is no call for heat, which often indicates the internal contacts have welded shut.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
