Utica-Dunkirk 240009342 Wire Harness

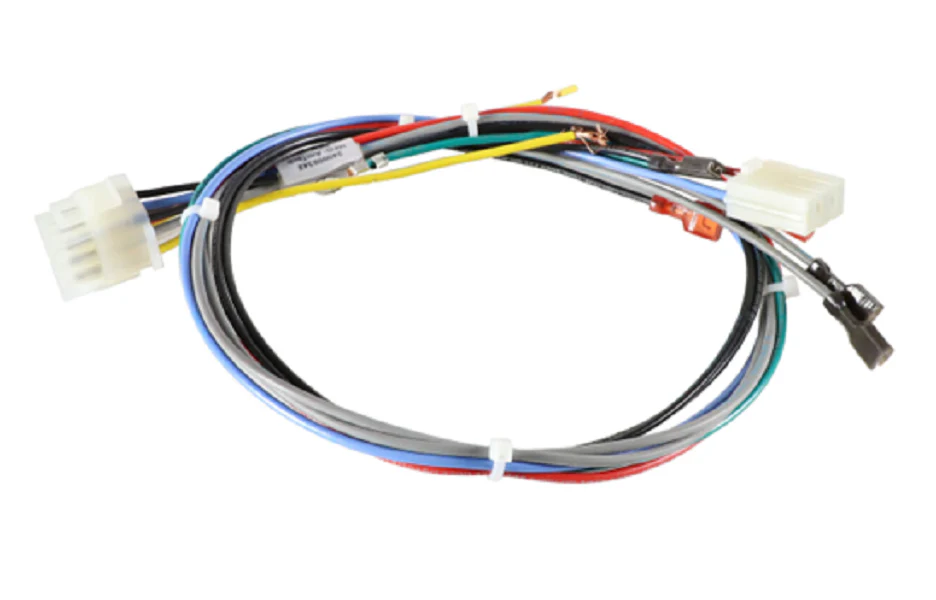

The Utica-Dunkirk 240009342 Wire Harness is a critical field-replacement component engineered specifically for low voltage control signaling in XEB Series II gas-fired boilers. As a HARN WIRE LO VOLT XEB assembly, this harness facilitates the essential 24V communication between the ignition control module, the gas valve, and the vent damper. Veteran techs know that intermittent firing or "ghost" faults in these hydronic systems often trace back to compromised terminal pins or heat-stressed insulation within the boiler wiring harness. Designed to meet exact OEM tolerances for lead length and connector pinning, the 240009342 ensures a secure, plug-and-play fit that maintains the integrity of the safety circuit. Using OEM replacement parts like this Utica-Dunkirk wiring harness is non-negotiable for adhering to the National Fuel Gas Code (ANSI Z223.1/NFPA 54) and ensuring the low voltage circuit provides accurate feedback to the diagnostic board during the pre-purge and ignition sequences.
Key Benefits- Specifically designed for Utica XEB-2 through XEB-7 series and equivalent Dunkirk models for seamless low voltage integration.
- Features high-temp rated insulation to resist the thermal stresses typical of 120,000 to 200,000 BTU cast iron boiler cabinets.
- Factory-crimped terminals ensure low-resistance electrical signals, preventing common ignition lockout issues.
- Standardized color-coding matches original Utica-Dunkirk wiring diagrams for rapid field diagnostics and reduced bench time.
- Is this harness compatible with older Series I XEB units? This part is specifically sized and pinned for XEB Series II boilers. Check your localized wiring schematic or the data plate before installation to verify terminal compatibility.
- Does this harness include the circulator pump wiring? No, this is the low voltage harness (24V). The circulator harness for high-voltage (120V) applications is typically a separate part number, such as 240008767.
- Will this fix a vent damper that fails to open? If the damper is receiving a signal but not operating, the damper motor is likely the issue. However, if there is no 24V signal at the damper plug, replacing this wire harness is the standard troubleshooting step.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $38.50
-65%$38.50
$13.47Utica-Dunkirk 240009342 Wire Harness
The Utica-Dunkirk 240009342 Wire Harness is a critical field-replacement component engineered specifically for low voltage control signaling in XEB Series II gas-fired boilers. As a HARN WIRE LO VOLT XEB assembly, this harness facilitates the essential 24V communication between the ignition control module, the gas valve, and the vent damper. Veteran techs know that intermittent firing or "ghost" faults in these hydronic systems often trace back to compromised terminal pins or heat-stressed insulation within the boiler wiring harness. Designed to meet exact OEM tolerances for lead length and connector pinning, the 240009342 ensures a secure, plug-and-play fit that maintains the integrity of the safety circuit. Using OEM replacement parts like this Utica-Dunkirk wiring harness is non-negotiable for adhering to the National Fuel Gas Code (ANSI Z223.1/NFPA 54) and ensuring the low voltage circuit provides accurate feedback to the diagnostic board during the pre-purge and ignition sequences.
Key Benefits- Specifically designed for Utica XEB-2 through XEB-7 series and equivalent Dunkirk models for seamless low voltage integration.
- Features high-temp rated insulation to resist the thermal stresses typical of 120,000 to 200,000 BTU cast iron boiler cabinets.
- Factory-crimped terminals ensure low-resistance electrical signals, preventing common ignition lockout issues.
- Standardized color-coding matches original Utica-Dunkirk wiring diagrams for rapid field diagnostics and reduced bench time.
- Is this harness compatible with older Series I XEB units? This part is specifically sized and pinned for XEB Series II boilers. Check your localized wiring schematic or the data plate before installation to verify terminal compatibility.
- Does this harness include the circulator pump wiring? No, this is the low voltage harness (24V). The circulator harness for high-voltage (120V) applications is typically a separate part number, such as 240008767.
- Will this fix a vent damper that fails to open? If the damper is receiving a signal but not operating, the damper motor is likely the issue. However, if there is no 24V signal at the damper plug, replacing this wire harness is the standard troubleshooting step.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
