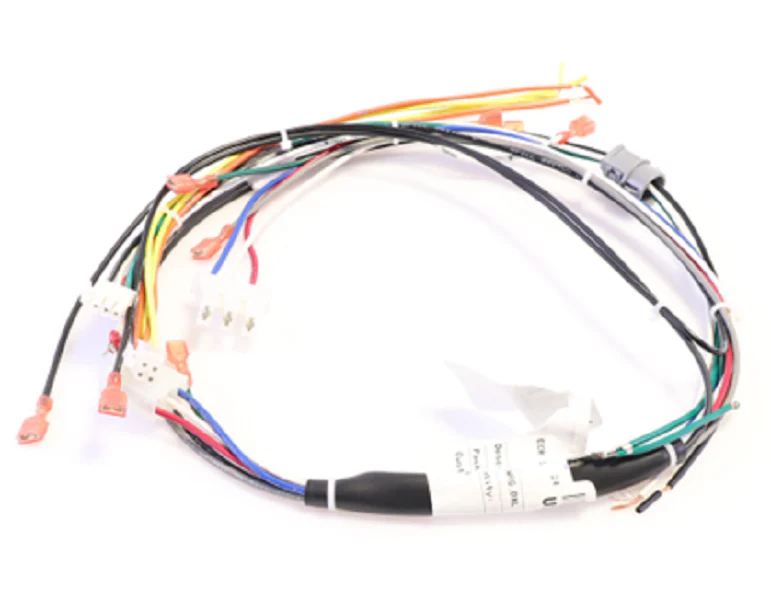

Utica-Dunkirk 240009075 Wiring Harness
The Utica-Dunkirk 240009075 Wiring Harness is a critical OEM component designed for high-precision electrical termination within the ECR International family of heating systems. Engineered specifically for Utica-Dunkirk DXL series boiler parts, this harness ensures stable signal transmission and power distribution across the integrated control logic of the unit. As a genuine ECR International replacement part, it addresses the common issue of high-resistance connections or insulation breakdown that can lead to intermittent flame signal loss or control board errors in residential and light commercial HVACR applications.
For service technicians, the 240009075 provides an exact drop-in mechanical fit, eliminating the need for field modifications or wire splicing which can compromise system safety. This HVAC electrical harness features robust pin connectors designed to withstand the thermal cycling inherent in boiler jacket environments. By utilizing this OEM boiler wiring harness, you maintain the original equipment's UL certifications and operational efficiencies. Whether troubleshooting a failed ignition sequence or performing a comprehensive control overhaul on a Dunkirk or Utica system, this harness is the professional choice for restoring reliable communication between the primary control and peripheral components.
- Direct Compatibility: Engineered specifically for the Utica-Dunkirk DXL series for seamless integration.
- Signal Integrity: High-specification conductors and connectors prevent voltage drops and logic interference.
- Installation Efficiency: Pre-terminated leads reduce field labor time and minimize wiring errors during component replacement.
- Vibration Resistance: Secure locking connectors prevent loose contacts caused by blower motor or circulator pump resonance.
Is this harness compatible with older Utica or Dunkirk models?
This part is specifically cataloged for the DXL series boilers. Always verify the part number against the unit’s wiring schematic or current data plate to ensure consistent pin-out configurations.
What are the signs of a failing electrical harness in these boilers?
Common indicators include erratic display readings, intermittent ignition failure, or visual evidence of terminal pitting and thermal damage at the connector housing.
Why should I use an OEM harness instead of field-built wiring?
The OEM 240009075 harness provides the exact gauge, length, and connector type required to maintain the boiler’s safety standards and prevent electrical faults that could damage more expensive control boards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
