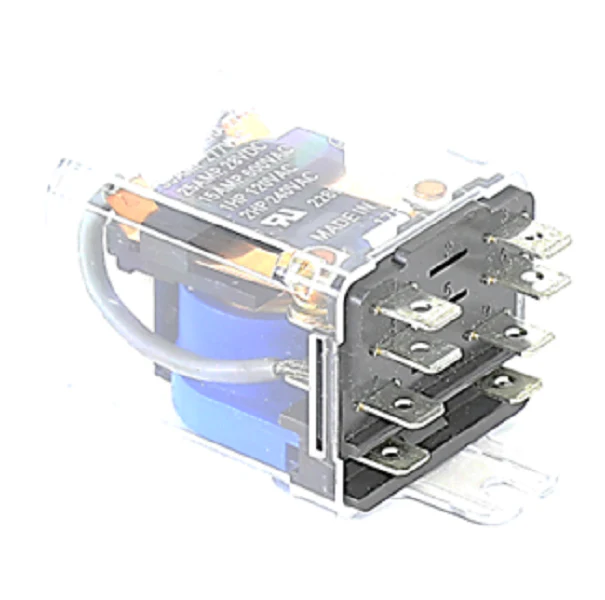

Utica-Dunkirk 118000012 Relay
The Utica-Dunkirk 118000012 Relay is a heavy-duty 24V DPDT 25A relay engineered for high-demand switching in commercial and residential HVACR systems. As a Double Pole Double Throw (DPDT) component, this relay provides versatile control over two separate circuits, making it an essential HVAC replacement part for managing fan motors, combustion blowers, and auxiliary heating elements. Rated for a significant 25 Amp current load, it is built to handle the high inrush currents typical of inductive motor loads without contact welding or premature failure.
Designed for seamless integration into Utica and Dunkirk boiler control strings, the 118000012 relay features a rugged construction that ensures stable performance under high-cycle industrial conditions. The 24-volt coil is optimized for standard low-voltage control circuits, ensuring compatibility with most modern boiler control boards and thermostats. For technicians performing field service, this general-purpose switching relay offers a reliable solution for restoring system logic and multi-load switching capability in a compact, easy-to-mount housing.
Key Benefits:- High Amperage Capacity: The 25A rating provides a robust buffer for high-torque motor startups and power distribution.
- DPDT Configuration: Allows for simultaneous switching of two independent circuits, simplifying complex wiring requirements.
- Precision 24V Coil: Engineered for standard HVAC transformers, providing consistent pull-in and drop-out voltages.
- Universal Compatibility: While optimized for Utica-Dunkirk equipment, this relay serves as a high-spec general purpose 24V relay for various industrial applications.
- Durable Construction: Built to withstand the thermal stress and vibrations common in boiler rooms and mechanical spaces.
- Can this relay replace a lower-amp DPDT relay? Yes, as long as the coil voltage is 24V, a 25A contact rating can safely replace lower-rated relays (e.g., 10A or 15A).
- What are the terminal types for the 118000012? This model typically utilizes standard 1/4-inch quick-connect terminals for fast field installation.
- Is this relay suitable for both heating and cooling applications? Absolutely; the DPDT switch action is ideal for switching between heating and cooling modes or managing multi-speed fan motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $45.58
-65%$45.58
$15.95Utica-Dunkirk 118000012 Relay
