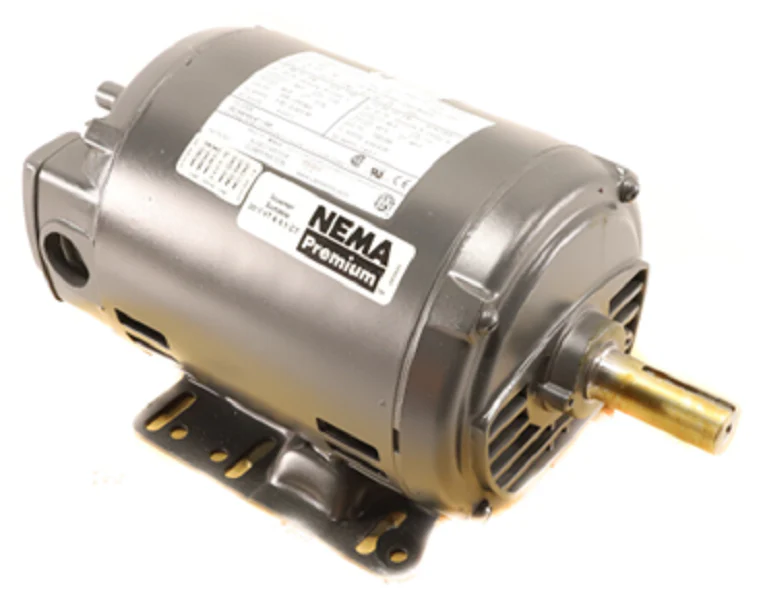

US Motors D2P2D Motor
The US Motors D2P2D is a high-efficiency 2HP three-phase motor designed for continuous duty in commercial and industrial HVACR environments. Built on a standard 145T NEMA frame, this Open Dripproof (ODP) motor provides optimal airflow across the internal windings, making it an ideal choice for clean, dry indoor installations. Running at a synchronous speed of 1800 RPM (1745 RPM full load), it delivers reliable torque for belt-drive fans, centrifugal pumps, and compressors. This unit features dual voltage 208-230/460V capability and is a direct replacement for Leeson 121005.00. The rigid base mount and ball bearing construction ensure structural stability and long-term rotor alignment, while the reversible rotation provides the field flexibility needed for various drive configurations. For contractors managing 50Hz applications, this motor is also rated for 1420 RPM at reduced frequency.
- Direct Cross-Reference: Engineered as the precise drop-in replacement for the Leeson 121005.00, ensuring zero-modification installation.
- Durable Construction: Features a 145T NEMA frame size with high-grade ball bearings to handle radial and axial loads in HVAC blower motors.
- Electrical Versatility: Supports three-phase power systems with dual voltage flexibility (208-230/460Vac) for versatile shop or facility integration.
- Thermal Management: The Open Dripproof enclosure allows for maximum cooling efficiency in environments where moisture is not a direct threat.
Common Questions
Is the D2P2D compatible with Variable Frequency Drives (VFDs)?
Yes, as a three-phase AC induction motor, the D2P2D is generally compatible with VFDs for speed control, provided the carrier frequency and voltage peaks are kept within NEMA MG1 Part 31 standards for general purpose motors.
Can this motor be mounted vertically?
This specific model features a rigid mount designed for horizontal installation. For vertical shaft-up or shaft-down applications, verify that the load does not exceed the ball bearing thrust capacity defined for the 145T frame.
What is the primary difference between this and a TEFC motor?
Unlike Totally Enclosed Fan Cooled (TEFC) units, this ODP motor has vents that allow ambient air to pass directly over the windings. It offers higher cooling efficiency in clean environments but should not be used in dusty or outdoor settings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
