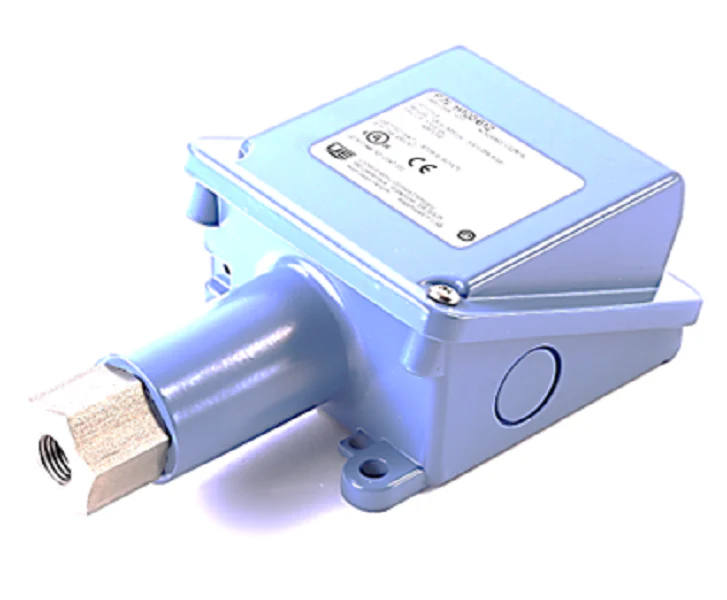

United Electric H100-612 Pressure Switch
The United Electric H100-612 Pressure Switch is an essential electromechanical component engineered for reliable performance in high-pressure HVACR systems and process plants. Featuring a robust 125-3000 PSI adjustable range, this NEMA 4X pressure switch utilizes a 303 stainless steel piston and a Buna-N O-ring to ensure long-term stability in demanding environments. This SPDT pressure switch provides a single snap-action output rated at 15A @ 125/250/480 VAC, making it highly versatile for controlling pumps and compressors or acting as a critical safety shutdown for fire suppression systems. For precise field calibration, the unit includes an internal adjustment with a high/low reference scale and a tamper-resistant setpoint lock. The epoxy-coated aluminum enclosure is designed with a slanted cover to improve wiring accessibility for contractors during installation. With a proof pressure of 10,000 PSI and 1/4 inch FNPT connections, this industrial pressure switch meeting UL listed and CE standards is a go-to choice for preserving equipment uptime.
Key Benefits- Corrosion Resistance: Features an epoxy-coated die-cast aluminum enclosure and 303 stainless steel wetted parts for harsh environments.
- Wide Setpoint Range: Fully adjustable between 125 and 3000 PSI to accommodate diverse system requirements.
- Ease of Installation: Clamshell design with a slanted cover offers superior access to the wiring terminal block.
- Fail-Safe reliability: Operates independently of control systems to provide a mechanical fallback for safety-critical shutdowns.
- Enhanced Durability: Rated for NEMA 4X, providing protection against windblown dust, rain, and hose-directed water.
- What are the deadband specifications for this model? The H100-612 typically features a fixed deadband ranging from 40 to 250 PSI depending on the specific setpoint.
- Can this switch be used in outdoor applications? Yes, the NEMA 4X and weatherproof rating make it suitable for outdoor installation where moisture or corrosion are concerns.
- What is the maximum proof pressure for the H100-612? This unit is rated for a proof pressure of 10,000 PSI and an overrange pressure of 6000 PSI.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
