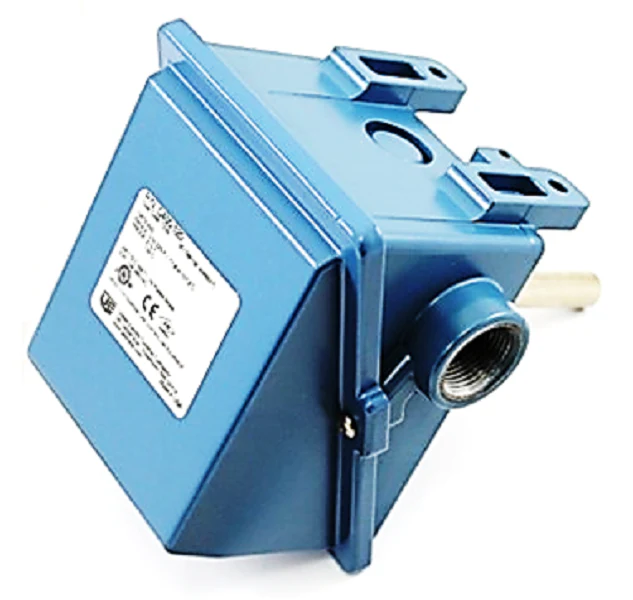

United Electric C400-120 Temp Switch
The United Electric C400-120 Temp Switch is a heavy-duty electromechanical control engineered for reliability in demanding process environments. Designed for direct mounting, it features a 0 to 225°F temperature range and a high-performance SPDT switch output rated at 15A @ 125/250/480 VAC. The rugged NEMA 4X epoxy-coated aluminum enclosure provides superior protection against corrosion and moisture, ensuring long-term integrity in HVACR and industrial gas applications. With a nickel-plated brass immersion stem and simple internal hex screw adjustment, this industrial temperature controller allows for precise set-point management without sacrificing durability. This immersion stem temperature switch is a standard-tier solution for contractors requiring a fail-safe limit control or alarm trigger that operates independently of complex control systems.
Key Benefits- Corrosion Resistance: The NEMA 4X enclosure and epoxy coating withstand harsh facility environments and chemical exposure.
- Versatile Electrical Compatibility: The 15A SPDT output integrates easily into existing 480 VAC or 125/250 VAC circuits.
- High Repeatability: Features 2% range repeatability for consistent threshold protection in critical heating and cooling loops.
- Electromechanical Reliability: Operates as a standalone safety shut-down or high-limit alarm, eliminating risks associated with communication failures.
- Robust Sensing: The 9/16" nickel-plated brass immersion stem ensures fast response times and process media compatibility.
How do you adjust the set point on the C400-120?
Set point adjustments are made internally using a hex screw located under the enclosure cover. Turn clockwise to raise the temperature setting and counter-clockwise to lower it. Verification with a calibrated temperature bath is recommended after installation.
Is this switch suitable for outdoor installation?
Yes, the United Electric 400 Series is rated NEMA 4X, making it water-tight and dust-tight for outdoor use. For applications with high condensation, vertical mounting with the electrical conduit facing away from the sky is preferred.
What is the maximum temperature limit for the sensor?
While the adjustable range is 0 to 225°F, the C400-120 can withstand occasional surges up to 275°F without affecting the calibration or repeatability of the sensing element.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $542.82
-65%$542.82
$189.99United Electric C400-120 Temp Switch
The United Electric C400-120 Temp Switch is a heavy-duty electromechanical control engineered for reliability in demanding process environments. Designed for direct mounting, it features a 0 to 225°F temperature range and a high-performance SPDT switch output rated at 15A @ 125/250/480 VAC. The rugged NEMA 4X epoxy-coated aluminum enclosure provides superior protection against corrosion and moisture, ensuring long-term integrity in HVACR and industrial gas applications. With a nickel-plated brass immersion stem and simple internal hex screw adjustment, this industrial temperature controller allows for precise set-point management without sacrificing durability. This immersion stem temperature switch is a standard-tier solution for contractors requiring a fail-safe limit control or alarm trigger that operates independently of complex control systems.
Key Benefits- Corrosion Resistance: The NEMA 4X enclosure and epoxy coating withstand harsh facility environments and chemical exposure.
- Versatile Electrical Compatibility: The 15A SPDT output integrates easily into existing 480 VAC or 125/250 VAC circuits.
- High Repeatability: Features 2% range repeatability for consistent threshold protection in critical heating and cooling loops.
- Electromechanical Reliability: Operates as a standalone safety shut-down or high-limit alarm, eliminating risks associated with communication failures.
- Robust Sensing: The 9/16" nickel-plated brass immersion stem ensures fast response times and process media compatibility.
How do you adjust the set point on the C400-120?
Set point adjustments are made internally using a hex screw located under the enclosure cover. Turn clockwise to raise the temperature setting and counter-clockwise to lower it. Verification with a calibrated temperature bath is recommended after installation.
Is this switch suitable for outdoor installation?
Yes, the United Electric 400 Series is rated NEMA 4X, making it water-tight and dust-tight for outdoor use. For applications with high condensation, vertical mounting with the electrical conduit facing away from the sky is preferred.
What is the maximum temperature limit for the sensor?
While the adjustable range is 0 to 225°F, the C400-120 can withstand occasional surges up to 275°F without affecting the calibration or repeatability of the sensing element.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
