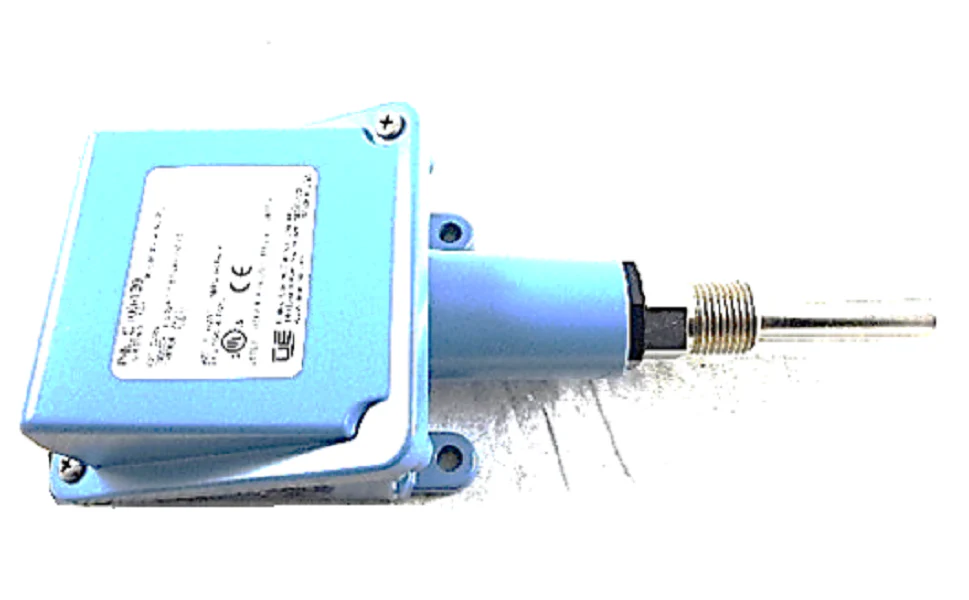

United Electric C100-120 Temp Switch
The United Electric C100-120 Temp Switch is a heavy-duty immersion stem temperature switch engineered for precision in demanding HVACR and industrial process control environments. Built with a nickel-plated brass sensing element and a 5/8-inch O.D. stem, this unit provides high-accuracy temperature monitoring across a 0 to 225°F adjustable set point range. The NEMA 4X enclosure, constructed from epoxy-coated die-cast aluminum, ensures superior protection against washdown and corrosive atmospheres, making it a staple for freeze protection and heat tracing applications.
For contractors, the SPDT snap-action switch rated at 15A 125/250/480 VAC simplifies wiring into diverse safety and alarm circuits. The internal hex adjustment and tamper-resistant setpoint lock provide a secure, cost-effective solution for preventing unauthorized changes in the field. Designed with a slanted cover for easy wiring accessibility, the United Electric 100 Series remains a top choice for maintaining system uptime in pumps, compressors, and boiler systems where mechanical reliability is non-negotiable.
Key Benefits- Corrosion Resistance: Rugged NEMA 4X epoxy-coated aluminum housing allows for reliable performance in harsh outdoor or washdown conditions.
- Precision Control: Features a fixed deadband and 1% repeatability for consistent SPDT switch actuation at the desired set point.
- Universal Connectivity: Includes two 7/8-inch conduit knockouts and a 1/2-inch NPT male process connection for rapid installation.
- Enhanced Safety: SIL 2 certified for use in safety instrumented systems, providing critical high-limit protection.
How do I adjust the set point on the United Electric C100-120?
Access the internal hex adjustment screw located under the enclosure cover. Turn the hex screw clockwise to raise and counterclockwise to lower the temperature setting. It is recommended to use a calibrated temperature source for precise verification.
Is the United Electric C100-120 suitable for outdoor use?
Yes, the weatherproof temperature switch is housed in a Gasketed NEMA 4X enclosure, protecting the internal microswitch from dust, moisture, and chemical exposure commonly found in industrial sites.
What is the maximum temperature limit for the sensing stem?
The C100-120 has a maximum temperature limit of 275°F. Exceeding this limit, even during system surges, can damage the bellows and affect setpoint accuracy.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
