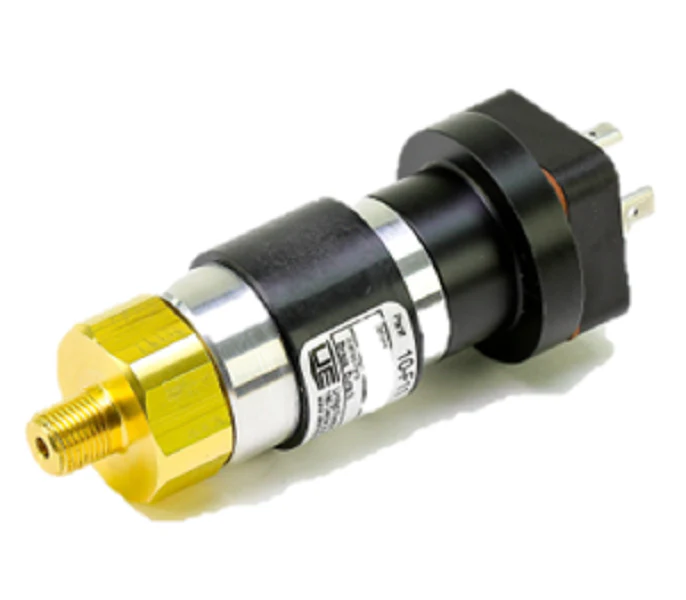

United Electric 10F11 Pressure Switch
The United Electric 10F11 Pressure Switch, also recognized in the field as the 10F-11, is a high-performance cylindrical pressure control engineered for space-constrained industrial and HVACR applications. This factory-set low pressure switch features a 10-150 PSI adjustable range and a robust 1/8" NPT male brass connection, ensuring reliable media compatibility with air, oil, and non-corrosive refrigerants. Designed with a Buna-N diaphragm and O-ring, it maintains a tight seal even in high-vibration environments, providing a proof pressure up to 3000 PSI to protect against system surges. The SPDT (Single Pole Double Throw) switch output is rated for 5A at 125/250 VAC, making it a versatile choice for compressor cycling, alarm signaling, or limit control. Its NEMA 4 / IP65 enclosure and 4-terminal DIN connector ensure a dust-tight and water-resistant electrical termination, ideal for demanding mechanical rooms.
Key Benefits- Compact Form Factor: The 1-1/4" diameter cylindrical design fits into tight OEM equipment footprints where standard switches fail to clear.
- Rugged Construction: Features vibration-resistant internals and a NEMA 4 rating for durable performance in harsh outdoor or wash-down conditions.
- Adjustable Versatility: Field-adjustable 10-150 PSI setpoint allows technicians to fine-tune system pressure thresholds on-site.
- High Overrange Protection: Rated for a 1500 PSI overrange pressure, preventing setpoint drift during transient spikes.
Is the 10F11 compatible with hydraulic oil?
Yes, the Buna-N diaphragm and brass pressure connection are suitable for mobile hydraulic units, lube oil systems, and standard HVACR fluids.
Can I use this for both normally open and normally closed circuits?
Correct. The SPDT contact configuration allows for flexible wiring to either trigger an alarm on high pressure or cut power to a compressor contactor.
What is the maximum operating temperature for this switch?
The United Electric 10 Series typically supports fluid temperatures up to 160°F, making it suitable for standard discharge line monitoring and industrial process loops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $183.82
-65%$183.82
$64.34United Electric 10F11 Pressure Switch
