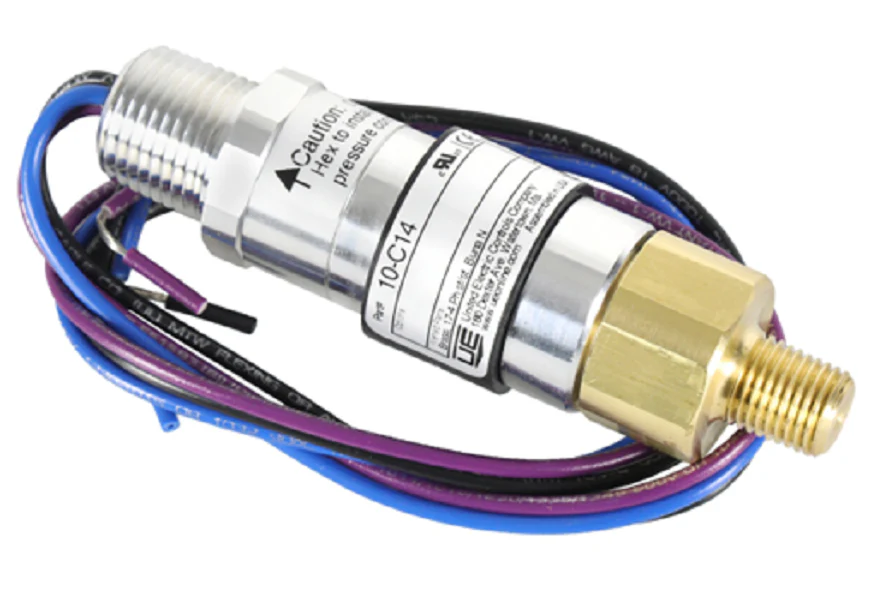

United Electric 10-C14 Pressure Switch
The United Electric 10-C14 Pressure Switch is a rugged, compact cylindrical pressure switch engineered for demanding industrial environments where space is at a premium but reliability is non-negotiable. This SPDT NEMA 4 mini switch features a 1/4" NPT male thread pressure connection and a high-performance O-ring sealed piston design, making it suitable for hydraulic and pneumatic systems prone to high pressure surges or vibration. With an adjustable pressure range of 180 to 3000 psi and a robust maximum pressure rating of 8000 psi, the 10-C14 provides precise control and setpoint stability. The housing is constructed from durable aluminum, and the electrical interface includes a 1/2" NPT male conduit connection with 20-inch leads. This unit is rated for diverse electrical loads, supporting 0.25A to 5A across 125/250V AC and various DC voltages, ensuring seamless integration into existing control circuits.
Key Benefits for Technical Applications- Environmental Protection: The NEMA 4 enclosure provides superior resistance to dust and moisture, making it ideal for outdoor and wash-down installations.
- High Overrange Capability: Engineered to withstand system pressures up to 8000 psi without compromising calibration or switch integrity.
- Flexible Electrical Integration: The SPDT (Single Pole Double Throw) output and 20-inch leads simplify wiring and provide versatile N.O./N.C. configuration options.
- Wide Temperature Tolerance: Maintains operational accuracy across a temperature range of -40°F to 180°F.
- Certified Safety: Meets rigorous global standards including UL listed, CSA certified, ATEX, and IECEx for hazardous area compliance.
What is the deadband for the United Electric 10-C14?
The deadband, or differential, is typically 10% to 20% of the setpoint range, though this varies based on the specific setpoint and line pressure conditions. It is optimized to prevent switch chattering in high-vibration environments.
Can this switch be field-adjusted?
Yes, the setpoint is field-adjustable. Technicians can calibrate the trigger point within the 180-3000 psi range by utilizing the internal hex adjustment screw located under the conduit opening.
Is the 10-C14 compatible with hydraulic fluids?
The 1/4 inch NPT connection and internal piston assembly are compatible with most non-corrosive hydraulic oils and pneumatic media. Always verify seal compatibility for specialized chemical applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
