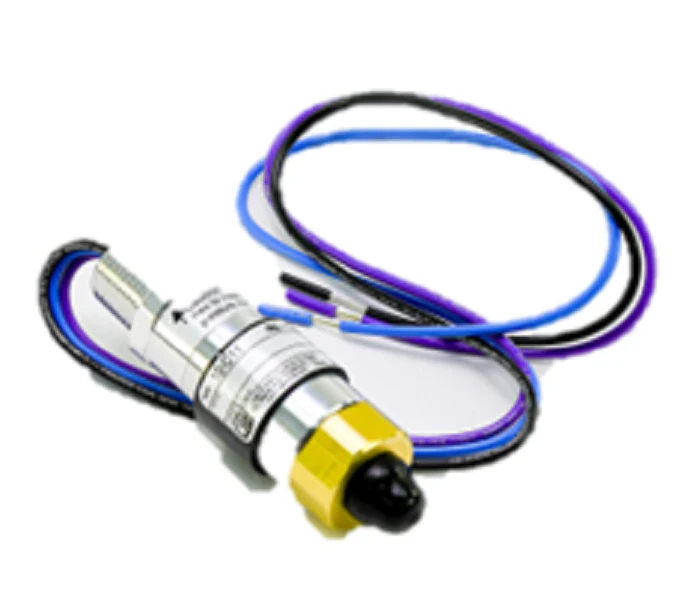

United Electric 10-C11 Pressure Switch
The United Electric 10-C11 Pressure Switch is a compact, high-performance solution for monitoring system pressures in demanding industrial and HVACR environments. Designed as part of the Spectra 10 Series, this mini pressure switch features a rugged, 1-1/4 inch cylindrical aluminum housing with a NEMA 4 enclosure rating, ensuring reliable protection against water and dust infiltration in both indoor and outdoor installations. High-precision control is achieved through its adjustable pressure range of 10 to 150 PSI, allowing for fine-tuned setpoints that meet specific system requirements. The unit utilizes a single-pole double-throw (SPDT) switch configuration with 5A electrical capacity, providing versatile wiring options for normally open or normally closed logic. Built with a Buna-N diaphragm and brass 1/8" NPT pressure connection, the 10-C11 is engineered to withstand surges and high proof pressures, making it a reliable choice for hydraulic units, lube oil systems, and compressor safety cycling where space is at a premium.
Key Benefits:- Compact Form Factor: The cylindrical 1-1/4" diameter design facilitates installation in tight cabinets and space-constrained equipment.
- Environmental Protection: The NEMA 4 rated housing maintains internal electrical integrity against moisture and contaminants.
- Broad Compatibility: An adjustable 10-150 PSI range makes this unit suitable for diverse applications, from air compressors to mobile hydraulic units.
- Durable Construction: High-quality Buna-N and brass wetted materials provide resistance to vibration and moderate pressure surges.
- Flexible Switching: The SPDT contact form allows technicians to manage both alarm circuits and system cut-offs simultaneously.
What is the maximum pressure this switch can handle?
The United Electric 10-C11 features a high proof pressure rating, typically up to 3,000 PSI, allowing it to survive significant system spikes without damage to the sensing element.
Can this be used for vacuum applications?
This specific model is calibrated for positive pressure between 10 and 150 PSI. For vacuum service, a dedicated vacuum switch from the United Electric 10 Series should be utilized.
Is the setpoint field adjustable?
Yes, the 10-C11 is designed with an external adjustment screw, allowing for precise field calibration to your specific operational parameters.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $164.74
-65%$164.74
$57.66United Electric 10-C11 Pressure Switch
